MULTICOMP MCBB830 Prototyping Board

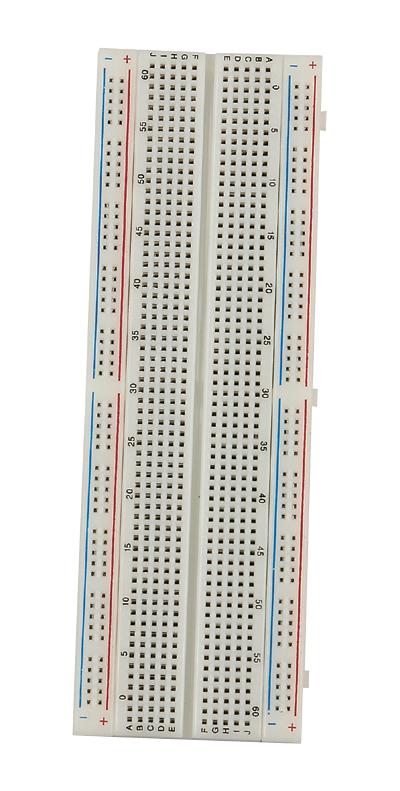

The MCBB830 is a 56 x 165mm solderless ABS prototyping board designed for easy circuit assembly. It features a 2.54mm pitch with 7 to 8mm strip length, a 630-tie-point terminal strip, and a 200-point distribution strip, supporting 29 to 20 AWG wire sizes. The board has electrical ratings of 300V and 3 to 5A, with a withstand voltage of 1000VAC for one minute. It also provides an insulation resistance of 500 Megaohms at DC 500V. Suitable for industrial applications, this product offers reliable performance with a 12-month limited warranty and high customer satisfaction ratings.
MULTICOMP MCBB830 Prototyping Board Specifications:
- Pitch : 2.54mm
- Terminal Strips : 630 Tie-point
- Distribution Strips : 200 Tie-point
- Rated Voltage / Current : 300V / 3 to 5A
- Insulation Resistance : 500 Megaohms / DC 500V
- Withstanding Voltage : 1,000VAC / 1 minute
- Wire Range : 20AWG to 29AWG
- Temperature Range : -25°C to +80°C
- Strip Length : 7mm to 8mm
- Dimensions : 56 x 165mm
Buy the Premier Farnell MCBB830 – Reliable Prototyping Board for Industrial Applications
Elevate your circuit design and testing with the versatile MCBB830 solderless prototyping board from Premier Farnell. Featuring a 2.54mm pitch, 630 terminal points, and 200 distribution points, it supports wires from 20 to 29 AWG for flexible connections. Rated at 300V and 3-5A, with 1000VAC withstand voltage, this board ensures safe and reliable operation in industrial applications. Its easy-to-use design accelerates prototype development, making it an essential tool for engineers and technicians seeking high performance and durability in their projects.
Buy Premier Farnell MCBB830 now and experience unmatched reliability and performance in circuit prototyping.
Frequently Asked Questions
Where can I buy MULTICOMP MCBB830?
You can click on the BUY or RFQ button to purchase MCBB830 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCBB830?
You can download the MCBB830 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCBB830?
MULTICOMP
