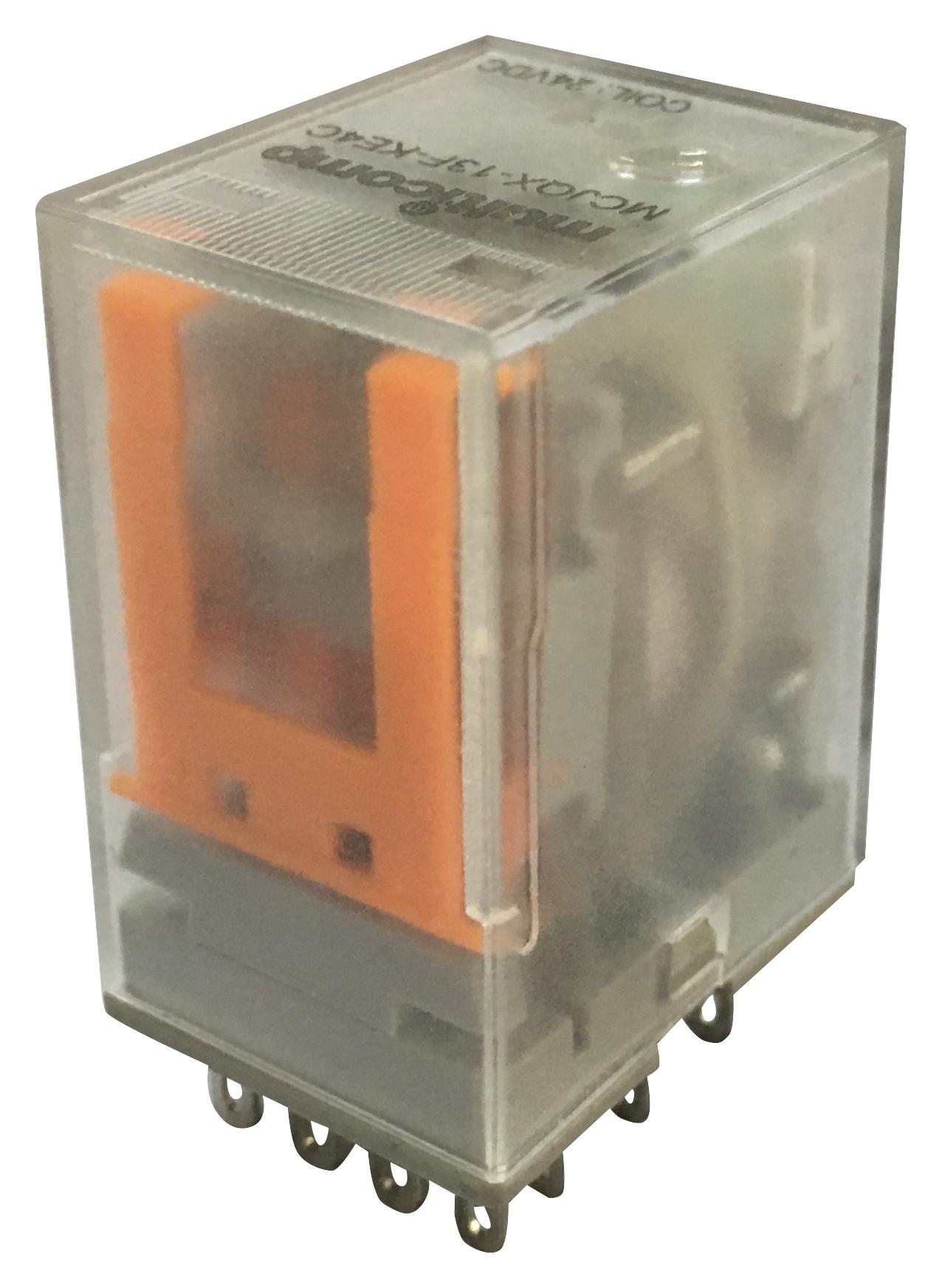

MULTICOMP MCJQX13FKE4C230VAC industrial power relay with LED
This power relay with LED indicator is designed for high-performance switching in automation and industrial control systems. Featuring a 2C or 4C contact configuration, it supports resistive loads up to 5A at 250V AC and offers high sensitivity with quick operate and release times below 20ms. Its compact size ensures easy installation, while the robust dielectric strength and insulation resistance provide reliable operation in various environmental conditions. Ideal for switching applications requiring high switching power and durability, this relay is suitable for industrial automation, control panels, and electronic devices.
MULTICOMP MCJQX13FKE4C230VAC industrial power relay with LED Specifications:
- Contact Form: 2 Change 4 Change
- Resistive Load: 5A/250V AC, 30V DC
- Rated Load: Motor 1/2HP, 240V AC; 1/3HP, 240V AC; 1/6HP, 240V AC; 41I3HP, 120V AC
- Contact Power (Resistive): 2500VA, 300W, 1250VA, 150W
- Contact Resistance (Initial): <50mΩ
- Electrical Life: > 10^6 Cycles
- Mechanical Life: 2×10^7 Cycles
- Operate Voltage (at 25°C): DC < 75% Rated, AC < 80% Rated
- Release Voltage (at 25°C): DC 210% Rated, AC 230% Rated
- Max Allowed Voltage: 110% Rated Voltage
- Insulation Resistance: 2500MΩ (500V DC)
- Coil Power Dissipation: 0.9W
- Consumption (AC): 1.2VA
- Operate Time: <20ms
- Release Time: <20ms
- Between Contacts Dielectric Strength: 1,000V AC / 1 min
- Between Contact and Coil: 2,000V AC / 1 min
- Ambient Temperature: -55°C to +70°C
- Humidity: 35% RH to 85% RH
- Shock Resistance: 10G (sine wave, 11ms)
- Vibration Resistance: 10-55Hz, 1mm amplitude
- Installation: Plug-in Terminals / PCB Terminals
- Weight: 35g
Buy the Buy multicomp Power Relay with LED Part Number MCJQX-13F-KE4C-230VAC Online
Purchase the multicomp MCJQX-13F-KE4C-230VAC relay with LED indicators online today. This versatile relay supports 2C and 4C configurations, with a 5A resistive load capacity at 250V AC. Its fast operate and release times below 20ms make it ideal for quick switching in automation systems. The relay features durable insulation, high dielectric strength, and is suitable for a wide temperature range. Easy to install with plug-in or PCB terminals, ensuring reliable performance in industrial environments.
Buy multicomp MCJQX-13F-KE4C-230VAC relay with LED indicators now and experience unmatched reliability and performance in industrial automation and control applications.
Frequently Asked Questions
Where can I buy MULTICOMP MCJQX13FKE4C230VAC?
You can click on the BUY or RFQ button to purchase MCJQX13FKE4C230VAC from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCJQX13FKE4C230VAC?
You can download the MCJQX13FKE4C230VAC datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCJQX13FKE4C230VAC?
MULTICOMP
