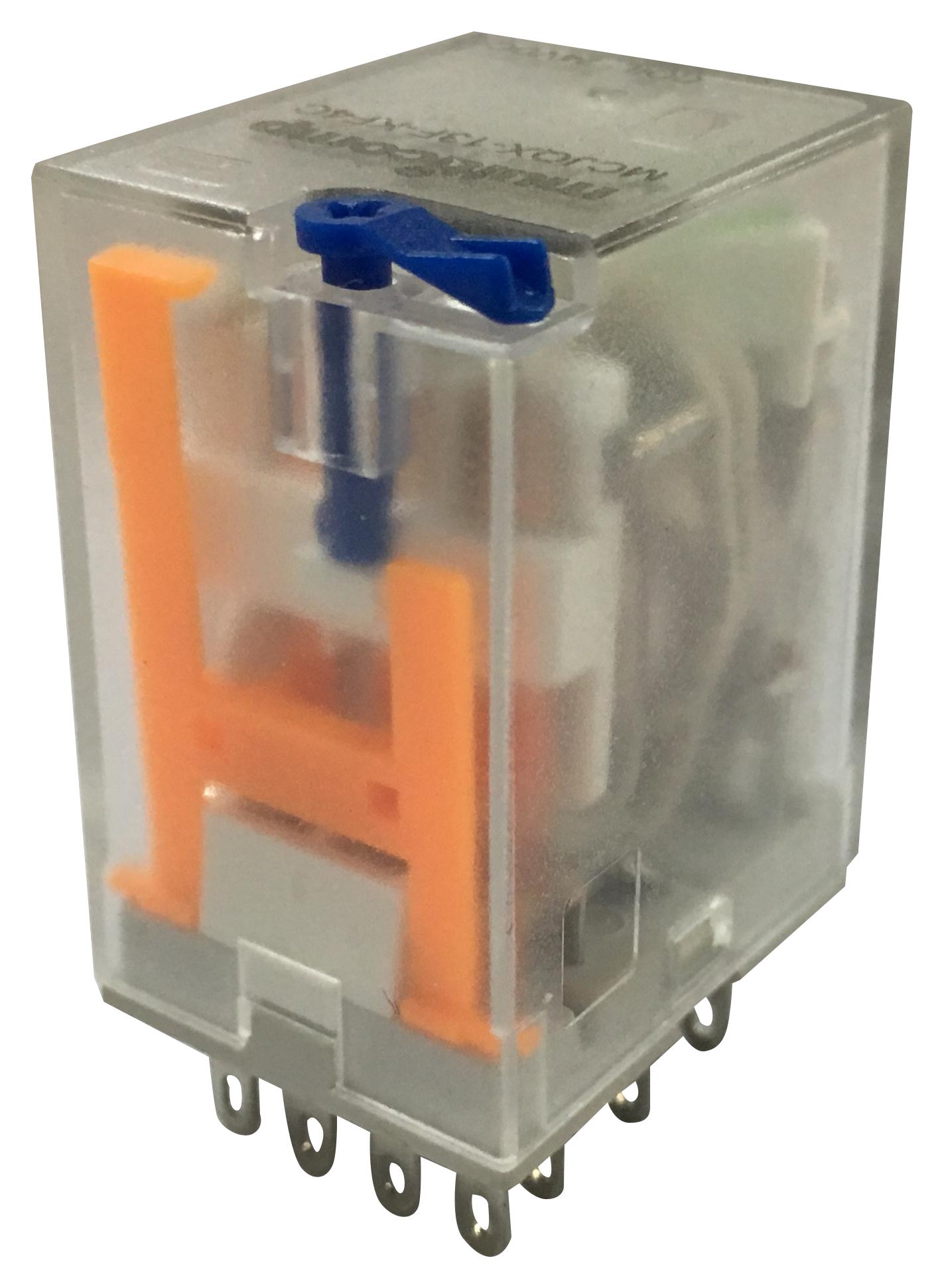

MULTICOMP MCJQX13FKF4C230VAC Power Relay
This high-quality power relay offers 10A switching capacity with both 2C and 4C contact configurations, suitable for various industrial and automation applications. It features a small size design, high switching power, and high sensitivity, making it reliable for resistive loads up to 250V AC and 30V DC. The relay includes plug-in or PCB terminal options, with fast operate and release times <20ms. Designed for optimal insulation resistance and durability, it supports voltages up to 250V AC and 30V DC, with a coil power consumption of 0.9W. Suitable for controlling motors, lighting, and other electrical loads, ensuring safety and efficiency.
MULTICOMP MCJQX13FKF4C230VAC Power Relay Specifications:
- Contact Form: 2 Change 4 Change
- Resistive Load: 10A/250V AC, 5A/250V AC, 30V DC
- Motor Load (AC-15): 1/3HP, 120V AC, 1/2HP, 240V AC
- Rated Load: 2500VA contact power, 300W motor power
- Contact Resistance: <50mΩ
- Material: Ag alloy
- Electrical Life: > 10^6 cycles
- Mechanical Life: 2 x 10^7 cycles
- Operate Voltage: DC: <75% Rated, AC: <80% Rated
- Release Voltage: DC: 210% Rated, AC: 230% Rated
- Insulation Resistance: 2500MΩ at 500V DC
- Coil Power: 0.9W, AC consumption: 1.2VA
- Operate Time: <20ms, Release Time: <20ms
- Between Contacts Dielectric Strength: 1,000V AC/1 min
- Between Contact and Coil: 2,000V AC/1 min
- Ambient Temp: -55°C to +70°C
- Humidity: 35%-85% RH
- Shock Resistance: 10G
- Vibration Resistance: 10-55Hz, 1mm amplitude
- Mounting: Plug-in or PCB terminals
- Weight: 35g
Buy the Buy multicomp Power Relay Part Number MCJQX13FKF4C230VAC Online
Order the multicomp Power Relay MCJQX13FKF4C230VAC today to ensure efficient electrical switching for industrial applications. Featuring a compact design, quick operation time below 20ms, and a high switching capacity of 10A, this relay is ideal for controlling motors, lighting, and other loads. It offers robust insulation resistance, multiple contact configurations, and high durability for continuous operation. Purchase now for dependable performance in automation systems, machinery, and electrical control panels, with fast shipping and excellent online support.
Get multicomp MCJQX13FKF4C230VAC today—built for reliable electrical switching and long-lasting durability.
