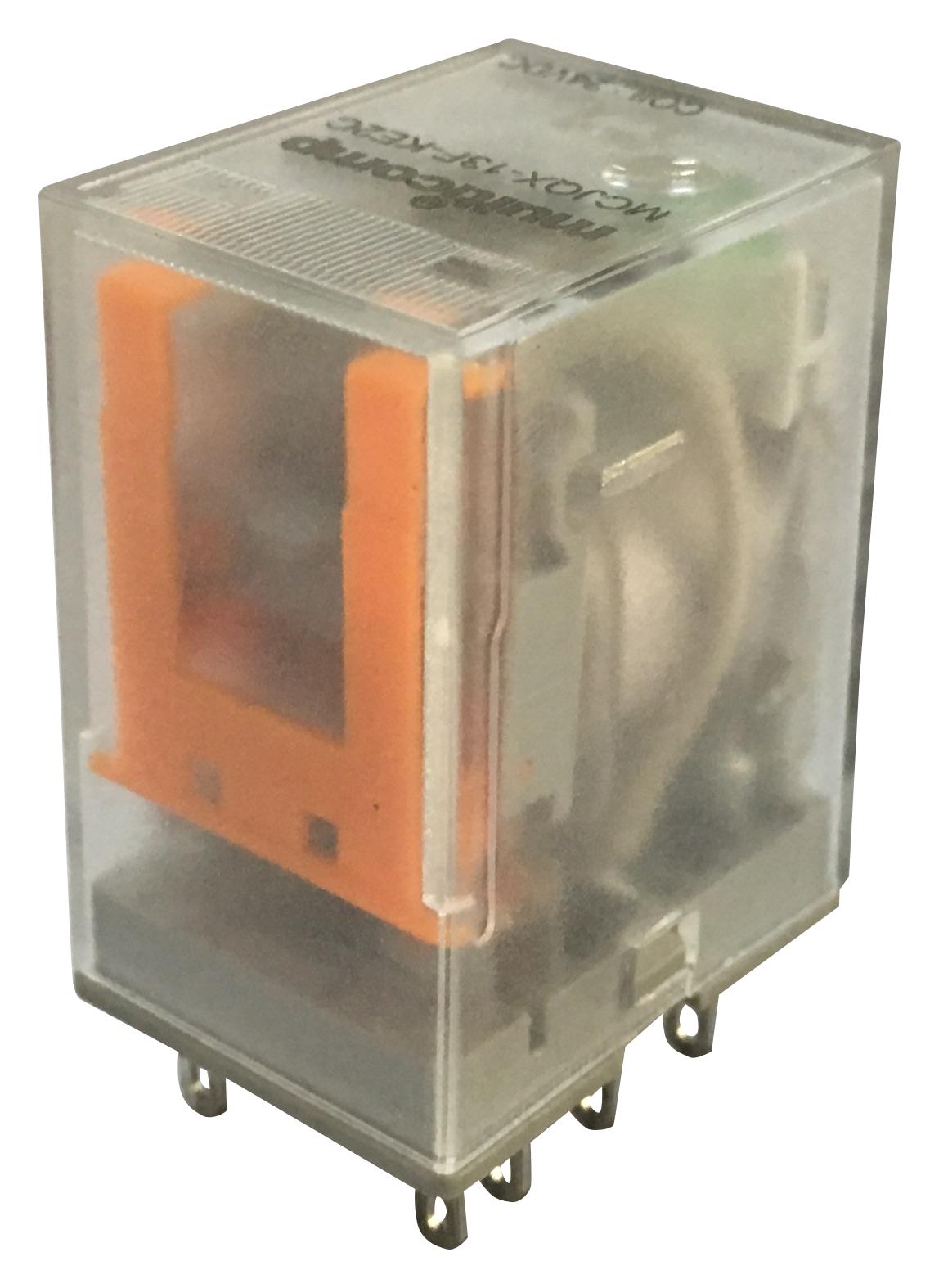

MULTICOMP MCJQX13FKE2C24VDC Power Relay
This power relay with LED combines compact size and high switching power for industrial automation and control systems. It features 2 change over contacts suitable for resistive loads up to 5A at 250V AC and motor loads up to 1/2 HP. Designed for reliable operation, with operate and release times less than 20ms, it features high insulation resistance, robust dielectric strength, and a wide ambient temperature range of -55°C to +70°C. Its coil consumes only 0.9W, making it energy efficient. Suitable for PCB or plug-in installation, it provides durable and consistent switching performance for diverse industrial applications.
MULTICOMP MCJQX13FKE2C24VDC Power Relay Specifications:
- Contact Form: 2 Change (DPDT)
- Resistive Load: 5A/250V AC, 30V DC
- Motor Load: 1/2HP at 240V AC
- Rated Load: 2500VA resistive, 300W motor
- Contact Resistance: <50mΩ
- Material: Silver Alloy
- Electrical Life: > 10^5 cycles
- Mechanical Life: 2×10^7 cycles
- Operate Voltage: <75% Rated (DC), <80% Rated (AC)
- Release Voltage: 210% Rated (DC), 230% Rated (AC)
- Max Voltage: 110% Rated
- Insulation Resistance: 2500MΩ at 500V DC
- Coil Power: 0.9W, AC Consumption: 1.2VA
- Operate Time: <20ms, Release Time: <20ms
- Between Contacts Dielectric Strength: 1000V AC/1 min
- Between Contact and Coil: 2000V AC/1 min
- Ambient Temperature: -55°C to +70°C
- Humidity: 35% to 85% RH
- Shock Resistance: 10G, 11ms sine pulse
- Vibration Resistance: 10–55Hz, 1mm amplitude
- Installation: PCB or Plug-in Terminals
- Weight: 35g
Buy the multicomp MCJQX13FKE2C- Reliable 2-Circuit Power Relay for Industrial Applications
Purchase the multicomp power relay with LED, designed for robust industrial switching. It features 2 change over contacts, high current capacity, quick response time, and reliable insulation, making it ideal for automation, manufacturing, and control panels. Its compact size allows easy integration into various systems, while low coil power consumption ensures energy efficiency. With a wide temperature range and durable construction, this relay guarantees long-term performance, reliability, and safety for your industrial needs. Buy online now for dependable control solutions.
Get multicomp MCJQX13FKE2C today—built for precision, energy efficiency, and long-lasting durability in industrial automation.
