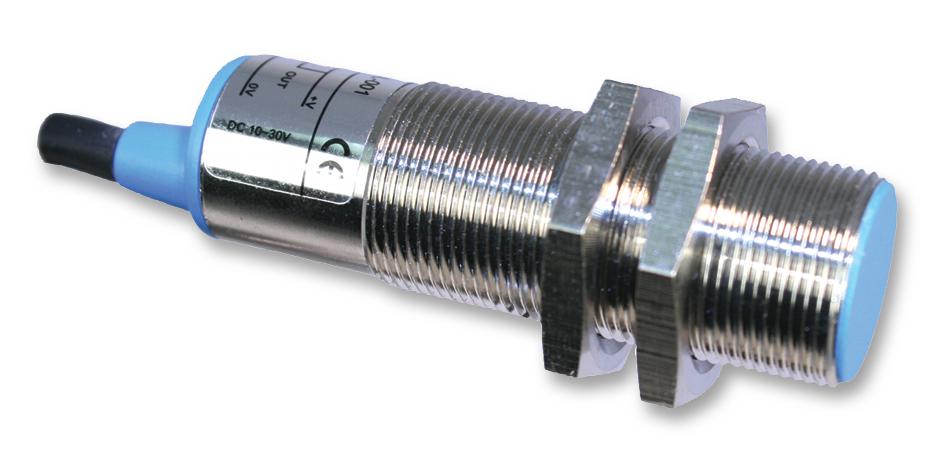

MULTICOMP MCPIPT18L001 Inductive Sensor Long Housing
The M18 Long Housing inductive sensor is a shielded DC 3-wire device designed for reliable presence detection of ferrous metals in industrial applications. Made with brass chrome-plated housing resistant to oil, water, acid, and alkaline environments, it features an LED operation indicator lamp for easy status monitoring and over-current protection for enhanced durability. Suitable for measuring, counting, and RPM measurement in manufacturing, chemical, paper, and light industry sectors, it provides IP67 water-resistant protection with a sensing distance of 5mm and a diameter over 18mm, operating at 10V-30V DC or 90V-250V AC power sources.
MULTICOMP MCPIPT18L001 Inductive Sensor Long Housing Specifications:
- Diameter: over 18mm
- Style: Cylinder shape
- Mounting Distance: Shielded 5mm
- Protection Rate: IP67 water-resistant
- Standard Sensing Object: Ferrous metals
- Current Output: DC: 200mA, AC: 300mA
- Power Supply: DC 10V to 30V, AC 90V to 250V
- Ambient Temperature: -20°C to +70°C
- Housing Material: Brass chrome plated, oil, water, acid, alkaline resistant
- Over-current protection included
- Connection: 3-wire, electrical connection diagram provided
Buy the Premier Multicomp M18 Long Housing – Reliable Inductive Sensor for Industrial Applications
Purchase the Premier Multicomp inductive sensor M18 Long Housing online today and enhance your industrial measuring, counting, and RPM applications. Designed with a robust brass body and IP67 protection, this sensor offers reliable ferrous metal detection across harsh environments. It features easy-to-read LED operation indicators, over-current protection, and versatile power options from 10V to 30V DC or 90V to 250V AC. An ideal choice for automation, manufacturing, and control systems, ensuring consistent and dependable performance in critical industrial processes.
Order your Premier Multicomp M18 Long Housing inductive sensor today and ensure accurate ferrous metal detection with durable, water-resistant performance in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP MCPIPT18L001?
You can click on the BUY or RFQ button to purchase MCPIPT18L001 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCPIPT18L001?
You can download the MCPIPT18L001 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCPIPT18L001?
MULTICOMP
