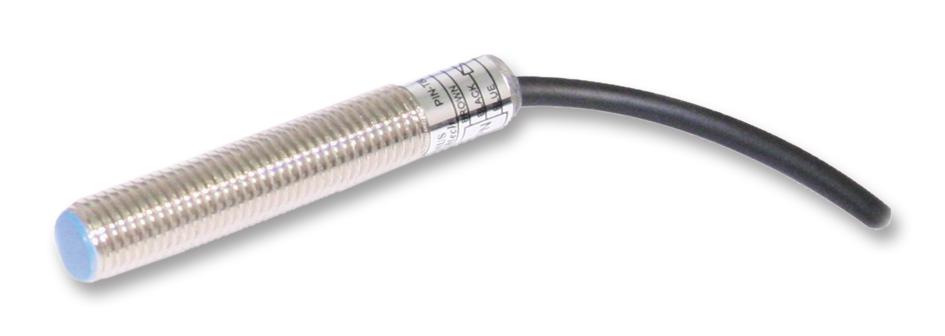

MULTICOMP MCPIPT5S001 Inductive Sensor
The inductive sensor features a compact M5 cylinder housing with a short design, suitable for industrial applications such as measuring, counting, and RPM detection. It operates on a 3-wire DC power supply of 10-30V, with a sensing distance of 1mm when shielded and 2mm unshielded. Made from chrome-plated brass, it offers water, oil, acid, and alkaline resistance with an IP67 rating. The sensor provides over-current and polarity protection, an LED indicator, and a frequency of less than 600Hz, ideal for automation and process control.
MULTICOMP MCPIPT5S001 Inductive Sensor Specifications:
- Sensing Distance: Shielded 1mm / Unshielded 2mm
- Power Supply: DC 10-30V
- Frequency: < 600Hz
- Current Output: 100mA
- Ambient Temperature: -20°C to +70°C
- Protection: Over-Current, Polarity
- IP Rating: IP67
- Material: Brass chrome-plated
- Connection Mode: 3-wire
- Inductive sensing for ferrous metals
- Mounting Distance: Shielded (1mm), Unshielded (2mm)
Buy the Premier Farnell MCPIPT5S001 – Reliable Inductive Sensor for Industrial Applications
Purchase the Premier Farnell MCPIPT5S001 inductive sensor online today and enhance your automation projects with a reliable, robust, and water-resistant sensing solution. Designed for industrial environments, this compact sensor features a short M5 housing, chrome-plated brass construction, and offers precise ferrous metal detection at a distance of 1mm shielded or 2mm unshielded. With over-current protection, LED indication, and IP67 rating for water resistance, it ensures long-lasting durability. A perfect choice for measuring, counting, RPM detection, and other automation needs.
Get Premier Farnell MCPIPT5S001 today—built for precision and durable industrial sensing in automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP MCPIPT5S001?
You can click on the BUY or RFQ button to purchase MCPIPT5S001 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MCPIPT5S001?
You can download the MCPIPT5S001 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MCPIPT5S001?
MULTICOMP
