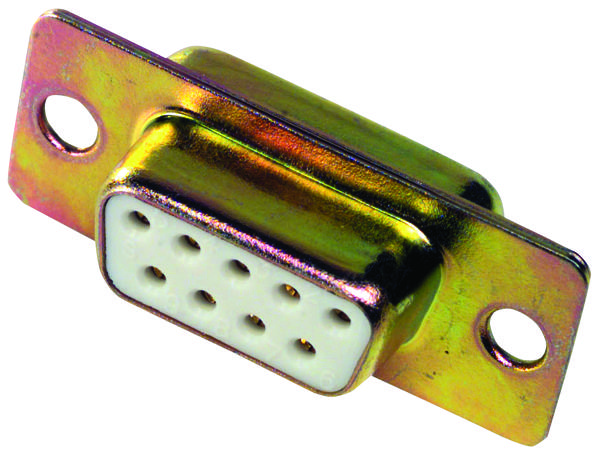

MULTICOMP SPC15187 D-Sub Solder Socket
This professional-grade electrical connector features a sturdy steel shell with tin plating, designed for reliable connections in electronic and industrial applications. It includes gold-plated stamped contacts with solder cups, supporting a current rating of 5 Amps. The insulator is made of blue UL 94-VO fiber composite, ensuring safety and durability at temperatures from -55°C to +100°C. This connector features a panel cutout of 15.34025 mm and offers maximum insulation resistance of 1000 MΩ. Ideal for high-quality electronic systems, it is RoHS compliant and designed for long-lasting performance.
MULTICOMP SPC15187 D-Sub Solder Socket Specifications:
- Shell Material: Steel, Tin-Plated
- Contact Material: Stamped Gold-Plated on Contact Area, Tin-Plated on Solder Cup
- Insulator: Blue UL 94-VO Fiber-Gloss
- Current Rating: 5 Amps
- Contact Resistance: 15 mΩ MAX
- Insulator Resistance: 1000 MΩ MIN
- Dielectric Voltage: 500 AC for 1 Minute
- Temperature Range: -55°C to +100°C
- Panel Cutout: 15.34025 mm
- RoHS Compliant
- Maximum Insulation Resistance: 1000 MΩ
- Tolerances: ±0.35 mm (±0.014 inches)
- Dimensions: 67.00 ±0.35 mm length, 61.00 ±0.10 mm width
- Weight: Approximate 110.74 g
- Certifications: RoHS Compliant
Buy the ElectroConnect Series D-Sub Solder Socket: SPC15187
Purchase the ElectroConnect D-Sub Solder Socket SPC15187 online today for high-quality, durable connections suitable for industrial and electronic applications. Crafted with a steel shell, gold-plated contacts, and UL 94-VO fiber insulator, it supports a 5 Amp current rating and features a panel cutout of 15.34025 mm. Certified RoHS compliant, this connector offers maximum insulation resistance and temperature stability from -55°C to +100°C. Order now to ensure reliable, long-lasting electronic system performance with fast shipping and excellent customer support.
Get ElectroConnect SPC15187 today—built for precision and reliable electronic connections in industrial systems.
