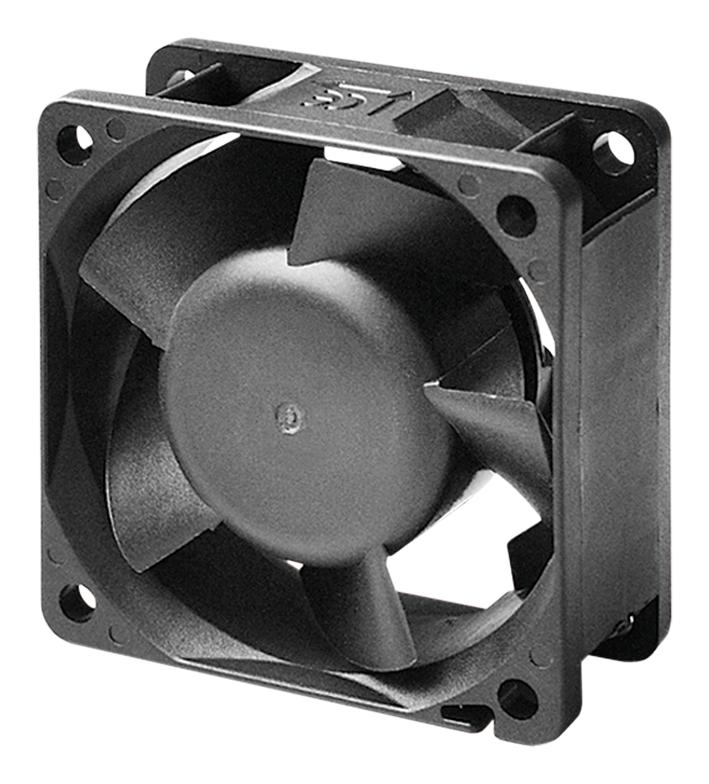

MULTICOMP MC36371 DC Axial Fan
This high-performance DC axial fan from Multicomp features a 2-phase, 4-pole brushless motor, thermoplastic PBT frame and blades, and precision ball bearings for durability. It measures 60mm x 60mm x 25mm, weighing 75g, and operates at 24V DC with a speed of approximately 6,900 RPM, providing an airflow of 36 CFM and static pressure of 0.54 inches H2O. Its efficient design ensures reliable cooling with minimal noise, suitable for electronic and industrial cooling applications, with an expected lifespan of 70,000 hours under optimal conditions.
MULTICOMP MC36371 DC Axial Fan Specifications:
- Motor design: 2 phases, 4-poles Brushless DC motor
- Bearing system: Precision Ball Bearing System
- Frame materials: Thermoplastic PBT
- Fan blade material: Thermoplastic PBT
- Dimensions: 60mm x 60mm x 25mm
- Mounting holes: Diameter 4.3mm in 8 holes
- Weight: 75g
- Rated voltage: 24V DC
- Rated current: 155mA / Max. 179mA
- Rated power consumption: 3.72 Watts / Max. 4.3 Watts
- Operating voltage range: 10V DC to 27.6V DC
- Starting voltage: 10V DC
- Operating temperature range: -10°C to +70°C
- Storage temperature range: -40°C to +70°C
- Rated speed: 6,900 RPM +15%
- Airflow: 36 CFM
- Static pressure: 0.54"-H2O
- Acoustic noise: 44dB(A)
- Insulation resistance: 10MQ at 500V DC
- Protection: Automatic Restart, Polarity Protection
- Life expectancy: 70,000 hours at 40°C, 65% Humidity
Buy the Buy Multicomp DC Axial Fan Part Number MC36371 Online
Order the Multicomp DC Axial Fan part number MC36371 online today to ensure efficient cooling for your electronic and industrial applications. This robust fan features a 2-phase brushless motor, thermoplastic construction, and a compact 60x60x25mm size, providing reliable operation at 24V DC with a speed of 6900 RPM and airflow of 36 CFM. Its design includes precision ball bearings, multiple mounting options, and a lifespan of 70,000 hours, making it a perfect choice for continuous cooling needs. Purchase now to enhance your equipment's performance with this dependable cooling fan.
Buy Multicomp MC36371 now and experience unmatched reliability and performance in electronic cooling solutions.
Frequently Asked Questions
Where can I buy MULTICOMP MC36371?
You can click on the BUY or RFQ button to purchase MC36371 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MC36371?
You can download the MC36371 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MC36371?
MULTICOMP
