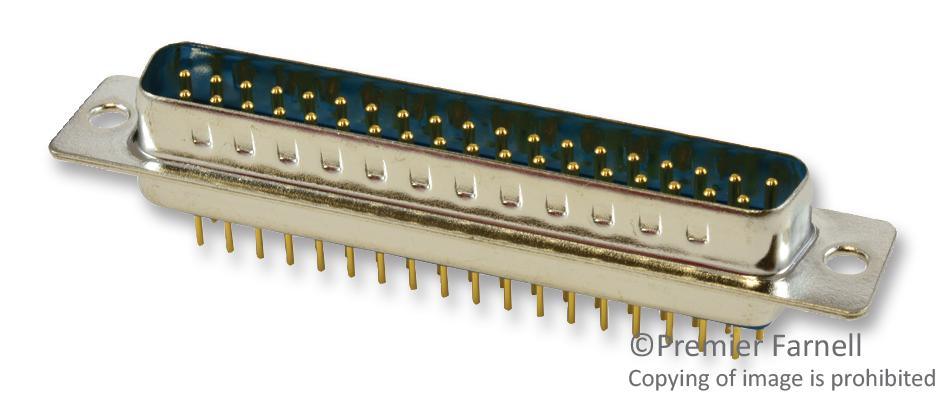

MULTICOMP SPC15413 D-Sub Connector
The SPC15413 is a 37-position standard D-sub plug featuring gold-plated over nickel brass contacts for reliable conductivity. It has a tin-plated steel shell and an insulator made of blue PBT reinforced with glass fiber. The connector utilizes solder contact termination. It is rated for 5A current and 500VDC voltage. The insulation resistance is 1000 MΩ, and it can withstand a dielectric voltage of 1000V per minute. Suitable for use in computers and computer peripherals, this connector offers durability and reliable performance.
MULTICOMP SPC15413 D-Sub Connector Specifications:
- Shell material: Steel, Tin-Plate
- Contact material: Brass, Gold-Plated over Nickel
- Insulator material: PBT & Glass-Fiber Reinforced, Blue color
- Current Rating: 5 Amps
- Dielectric Strength: 1,000V for One Minute
- Insulator Resistance: 1,000MΩ minimum at 500V DC
- Operating Temperature: -50°C to +105°C
- Pin Count: 37
- Termination: Solder
- Conformance: RoHS Compliant
- Dimensions: 69.3mm length, 63.50mm width, 55.42mm height, 2.77mm pin diameter, 12.55mm pin spacing
Buy the Buy Elementt4 D-Sub Plug Part Number SPC15413 Online
Purchase the Elementt4 D-Sub Connector SPC15413 online today to enjoy fast shipping and secure checkout. Designed for reliable data and power transfer, this 37-pin connector features gold-plated contacts, a sturdy steel shell, and a durable PBT insulator reinforced with glass fiber. Perfect for computer systems, peripherals, and industrial applications, it ensures long-lasting performance with a current rating of 5A and dielectric strength of 1000V. Order now and enhance your electronic connections effortlessly.
Order your Elementt4 Series SPC15413 37-Pin D-Sub Connector today and ensure reliable connectivity for your computer and peripheral projects.
