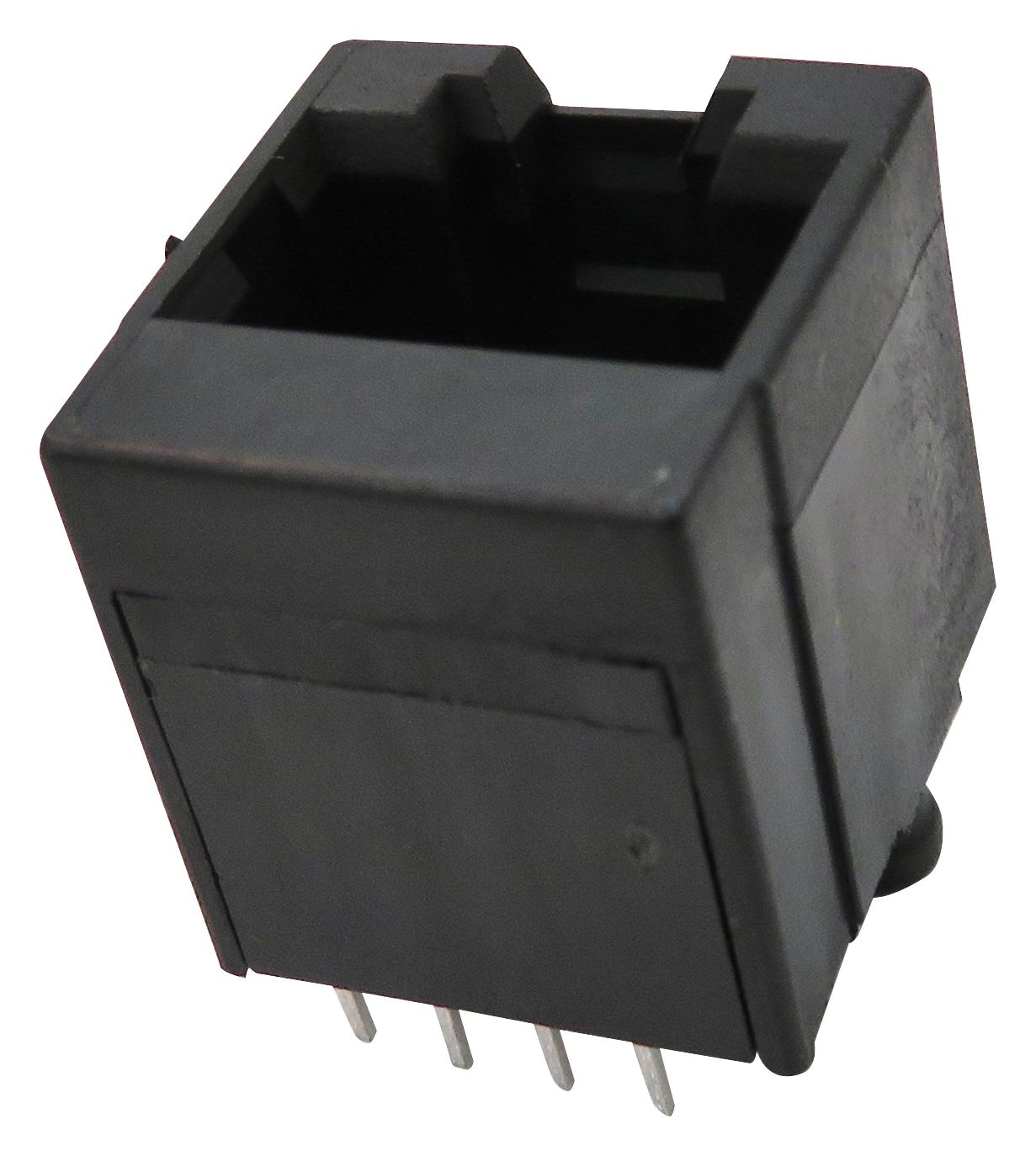

MULTICOMP MTJ88FX1 Ethernet Jack
This is a modular RJ45 jack designed for Ethernet connections, featuring an 8P8C configuration suitable for CAT5 and CAT5E cabling. Made from durable PBT material rated UL 94V-0, it has a black insulator, gold flash plating, and supports operation voltages up to 125VAC. With a current rating of 1.54A, it offers low contact resistance of 20 milliohms, high insulation resistance of 1000 megaohms, and dielectric withstand voltage of 1000VAC for 1 minute. Its vertical orientation and unshielded, through-hole termination make it ideal for reliable network connections in industrial environments, with a temperature range from -40°C to +85°C.
MULTICOMP MTJ88FX1 Ethernet Jack Specifications:
- Modular Connector Type: RJ45 Jack
- Configuration: 8P8C
- Number of Ports: 1
- LAN Category: Cat5, Cat5e
- Orientation: Vertical
- Shielding: Unshielded
- Termination Type: Through Hole
- Material: PBT, Rated UL 94V-0
- Insulator Colour: Black
- Contacts: Phosphor Bronze, .0137” [0.35mm] Thick Flat
- Plating: Gold flash 0.15u”, 30u” Gold, 50u” Gold
- Operation Voltage: 125V AC Max.
- Current Rating: 1.54A Max.
- Contact Resistance: 20mQ Max.
- Insulation Resistance: 1,000MQ Min. @ 500V DC
- Dielectric Withstanding Voltage: 1,000V AC for 1 minute
- Temperature Rating: -40°C to +85°C
Buy the Multicomp Modular Telephone Jack – Reliable Ethernet Connectors for Industrial Applications
Purchase the high-quality Multicomp Ethernet Jack online today and ensure reliable network connectivity for industrial, commercial, or home applications. Expertly designed with durable materials, gold flash plating for excellent signal integrity, and UL-rated insulation. It supports CAT5 and CAT5E cabling, features a vertical orientation, and is easy to install with through-hole termination. Whether for industrial automation, networking, or telecommunications, this Ethernet jack offers high electrical performance, excellent insulation resistance, and a wide operating temperature range from -40°C to +85°C, providing a dependable solution for your connectivity needs.
Order your Multicomp Series MTJ88FX1 modular RJ45 jack today and ensure dependable high-speed Ethernet connections in your industrial or network projects.
Frequently Asked Questions
Where can I buy MULTICOMP MTJ88FX1?
You can click on the BUY or RFQ button to purchase MTJ88FX1 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part MTJ88FX1?
You can download the MTJ88FX1 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of MTJ88FX1?
MULTICOMP
