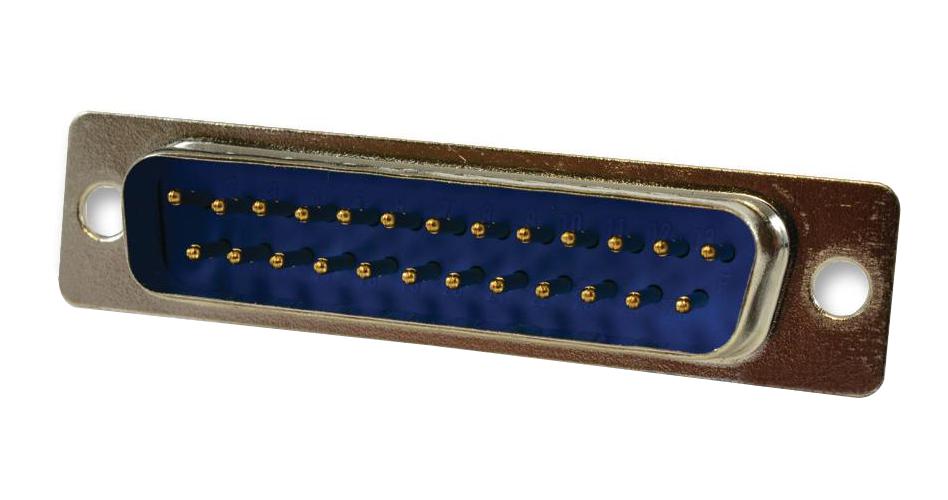

MULTICOMP SPC15422 D-Sub Connector
The SPC15422 is a 25-pin D-Sub connector with a robust steel shell, tin-plated for durability, and a blue PBT reinforced fiber glass insulator. It features stamped brass contacts plated with gold over nickel, ensuring reliable electrical connectivity rated for 5A current. Designed for solder termination, it offers excellent dielectric strength of 1,000V for one minute and an insulation resistance of at least 1,000MΩ at 500V DC. Operating temperature ranges from -60°C to +105°C, making it suitable for industrial and communication applications. Its compact dimensions and sturdy construction ensure dependable performance in demanding environments.
MULTICOMP SPC15422 D-Sub Connector Specifications:
- Shell: Steel, Tin-Plated
- Contact: Brass, Stamped Gold over Nickel Plated
- Insulator: PBT & Fiber-Glass Reinforced, Blue Colour
- Current Rating: 5 Amps
- Dielectric Strength: 1,000V for One Minute
- Insulation Resistance: 1,000MΩ Minimum at 500V DC
- Temperature Range: -60°C to +105°C
- Dimensions: Approximately 47.04 mm length, 41.00 mm width, 11.83 mm height
- Mating Face: 5.84 mm
- Panel Cutout: 3.00 mm
- Max Panel Thickness: 1.30 mm
Buy the Multicomp SPC15422 – Reliable D-Sub Connector for Industrial Applications
Purchase the Multicomp SPC15422 25-pin D-Sub connector online now and enjoy fast shipping, competitive pricing, and reliable performance. Designed with a durable steel shell and gold-plated contacts, this connector guarantees exceptional electrical connectivity for industrial, networking, and communication systems. Its compact size, high dielectric strength, and temperature tolerance ensure optimal performance in demanding environments. Whether for professional installations or DIY projects, this connector offers excellent value, quality, and ease of use, making it the ideal choice for reliable electronic connections.
Order your Multicomp SPC15422 25-pin D-Sub connector today and ensure dependable connectivity in your industrial and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15422?
You can click on the BUY or RFQ button to purchase SPC15422 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15422?
You can download the SPC15422 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15422?
MULTICOMP
