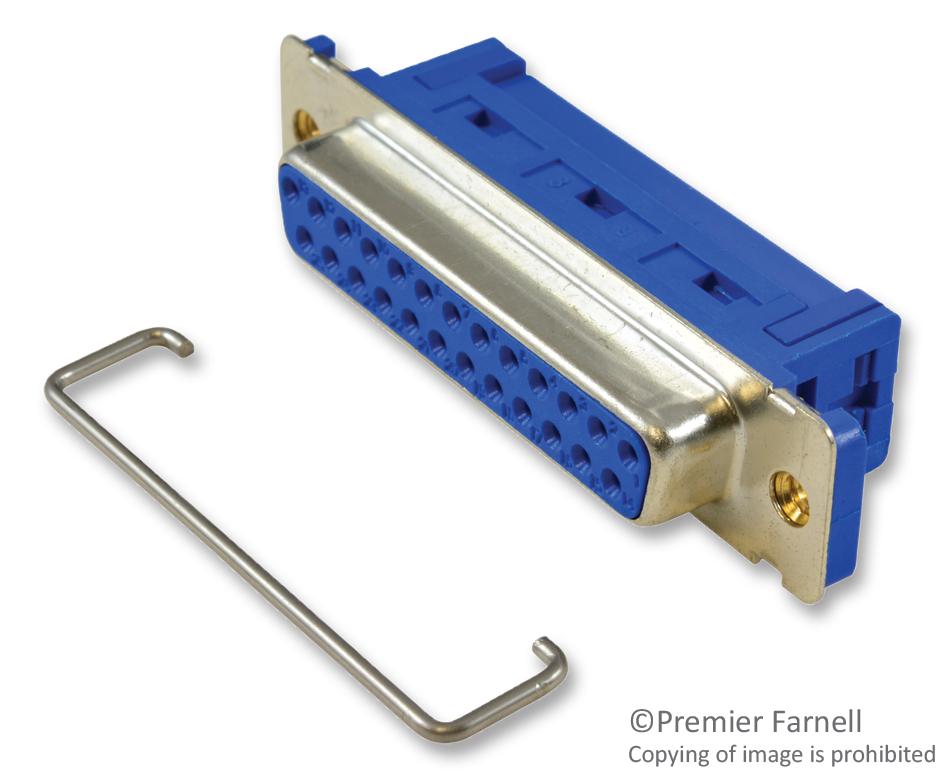

MULTICOMP SPC15437 IDC Receptacle Connector

The SPC15437 is a 25-position D-sub IDC receptacle connector featuring gold-plated stamped brass contacts and a blue PBT reinforced housing compliant with UL94V-0 standards. It utilizes IDC termination technology to securely connect 26 to 28 AWG wires. Designed for high-reliability mass termination, it supports standard 0.05-inch pitch round conductor flat ribbon cables with a gas-tight junction at each conductor. The connector provides internal transition from standard 0.055-inch contact spacing, facilitating easy termination without special preparation. Its mating area is duplex plated for durability, and it is rated for 1A current with a maximum contact resistance of 15 milliohms and a minimum insulation resistance of 1000 megaohms. The operating temperature range spans from -55°C to +105°C. Suitable for communications and networking applications.

View SPC15437Datasheet [pdf]

Buy the SPC Series Connector: IDC Receptacle 25-Position SPC15437

Order the SPC15437 IDC receptacle connector online today to ensure reliable connections in your communication systems. Designed with gold-plated contacts and a durable blue PBT housing, it supports 26-28 AWG wires with a 0.05-inch pitch, making termination quick and secure. Rated for 1A current and operating from -55°C to +105°C, it’s ideal for networking, industrial, and electronic applications. Experience hassle-free ordering and fast delivery while upgrading your project’s connectivity with this high-quality connector.

Buy SPC series IDC receptacle connector SPC15437 now and experience unmatched reliability and performance for your communication and networking needs.
