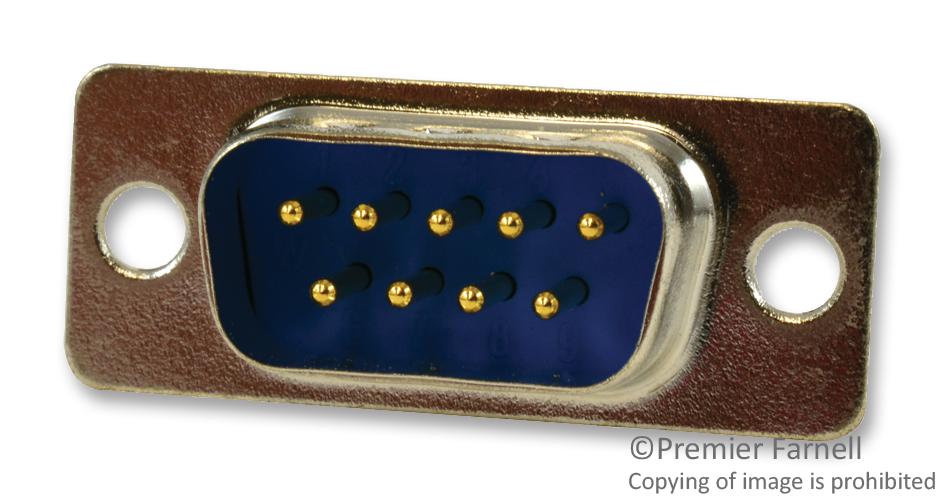

MULTICOMP SPC15444 D-Sub Connector
The SPC15444 is a 9-way D-sub straight plug connector featuring gold-plated over nickel brass contacts and a blue PBT with fiber glass reinforced housing. This PCB mount connector uses solder termination and is rated for 5A current. It offers a minimum insulation resistance of 1000 megaohms and operates within a temperature range of -50°C to +105°C. Suitable for applications in communications, networking, and industrial environments, it is part of Multicomp's product line, which has a rating of 4.6 out of 5 stars, and includes a 12-month limited warranty. 96% of customers would recommend this product to a friend.
MULTICOMP SPC15444 D-Sub Connector Specifications:
- Shell material: Steel, Tin-Plate
- Contact: Brass, Machine Pin, Gold-Plated Over Nickel
- Insulator: PBT & Fiber Glass Reinforced, Blue Color
- Current Rating: 5 Amps
- Dielectric Strength: 1,000V for One Minute
- Insulator Resistance: 1,000 MΩ Min, at 500V DC
- Temperature Range: -50°C to +105°C
- Dimensions: millimeters and inches as specified, including 24.99mm length and 16.92mm width
- Connector Type: 9-pin D-sub, straight plug
- Mounting Method: PCB solder termination
- RoHS Compliant
Buy the Multicomp Series D-Sub Connector: SPC15444
Order the Multicomp SPC15444 D-Sub connector online today to enhance your electrical and communication projects. This 9-pin straight plug features gold-plated contacts for reliable conductivity, a durable blue housing made of PBT reinforced with glass fiber, and a robust steel shell with tin plating. Rated for 5A, it has excellent dielectric strength of 1,000V, an insulation resistance of 1,000 MΩ, and operates efficiently between -50°C and +105°C. Designed for PCB mounting with solder termination, this connector ensures dependable performance in industrial, networking, and communication applications. Purchase now for long-term reliability and easy installation.
Get Multicomp SPC15444 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP SPC15444?
You can click on the BUY or RFQ button to purchase SPC15444 from an authorized MULTICOMP distributor.
How do I troubleshoot issues or seek technical support for part SPC15444?
You can download the SPC15444 datasheet or visit the MULTICOMP website for support.
Who is the manufacturer of SPC15444?
MULTICOMP
