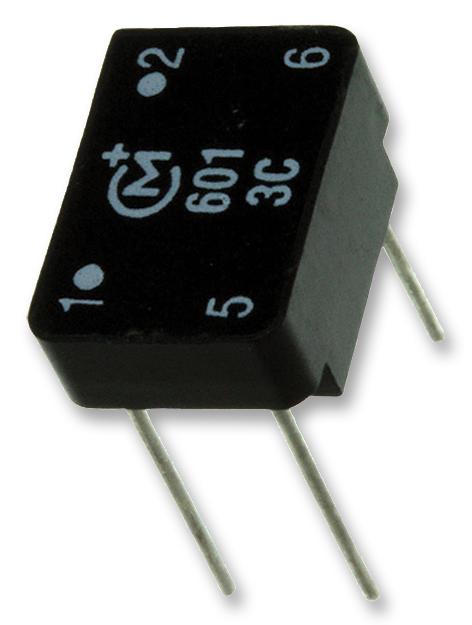

MURATA POWER SOLUTIONS 766011C Pulse Transformer
The 766 Series pulse transformers by Murata Power Solutions are versatile, toroidal, encapsulated devices designed for line coupling, impedance matching, and isolation in electronic circuits. Featuring RoHS compliance, up to 11.7mH inductance, 50V isolation, and industry-standard pinout, they suit small power supplies and filtering applications. With robust construction, UL 94 V-0 materials, and multiple configurations, these transformers excel in providing reliable electrical isolation, meet industry safety standards, and are PCB mountable for ease of integration, ensuring dependable performance in various electronic systems.
MURATA POWER SOLUTIONS 766011C Pulse Transformer Specifications:
- RoHS compliant
- Inductance: up to 11.7mH
- Isolation Voltage: 50V
- Maximum Interwinding Capacitance: 6mF
- DC Resistance: approximately 482Ω
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -60°C to 125°C
- Material: UL 94 V-0 package materials
- Mounting: PCB mounting
- Construction: Toroidal
- Maximum Voltage Withstand: 500Voc
- Pin Pitch: 2.54 mm (0.100 inches)
- Tube Dimensions: Length 21.25mm (0.84 inches), Diameter 11.00mm (0.433 inches)
- Pin Connection Style: 6 Pin DIP (top view)
- Maximum Soldering Temperature: 300°C for 10 seconds
- Package Weight: approximately 1.19 grams
Buy the Murata Series 766 Pulse Transformers: 766011C
Enhance your electronic projects with the high-quality Murata Series766 pulse transformer. Featuring toroidal construction, up to 11.7mH inductance, 50V isolation, and industry-standard pinout, it is ideal for line coupling, impedance matching, and filtering applications. Its encapsulated design ensures durability and safety with UL 94 V-0 materials. Suitable for PCB mounting, these transformers meet strict safety standards. Purchase online today for dependable performance, easy integration, and efficient circuit isolation tailored to your power and filtering requirements.
Order your Murata Series766 pulse transformer today and enjoy reliable electrical isolation for your power supply and filtering needs.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS 766011C?
You can click on the BUY or RFQ button to purchase 766011C from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 766011C?
You can download the 766011C datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of 766011C?
MURATA POWER SOLUTIONS
