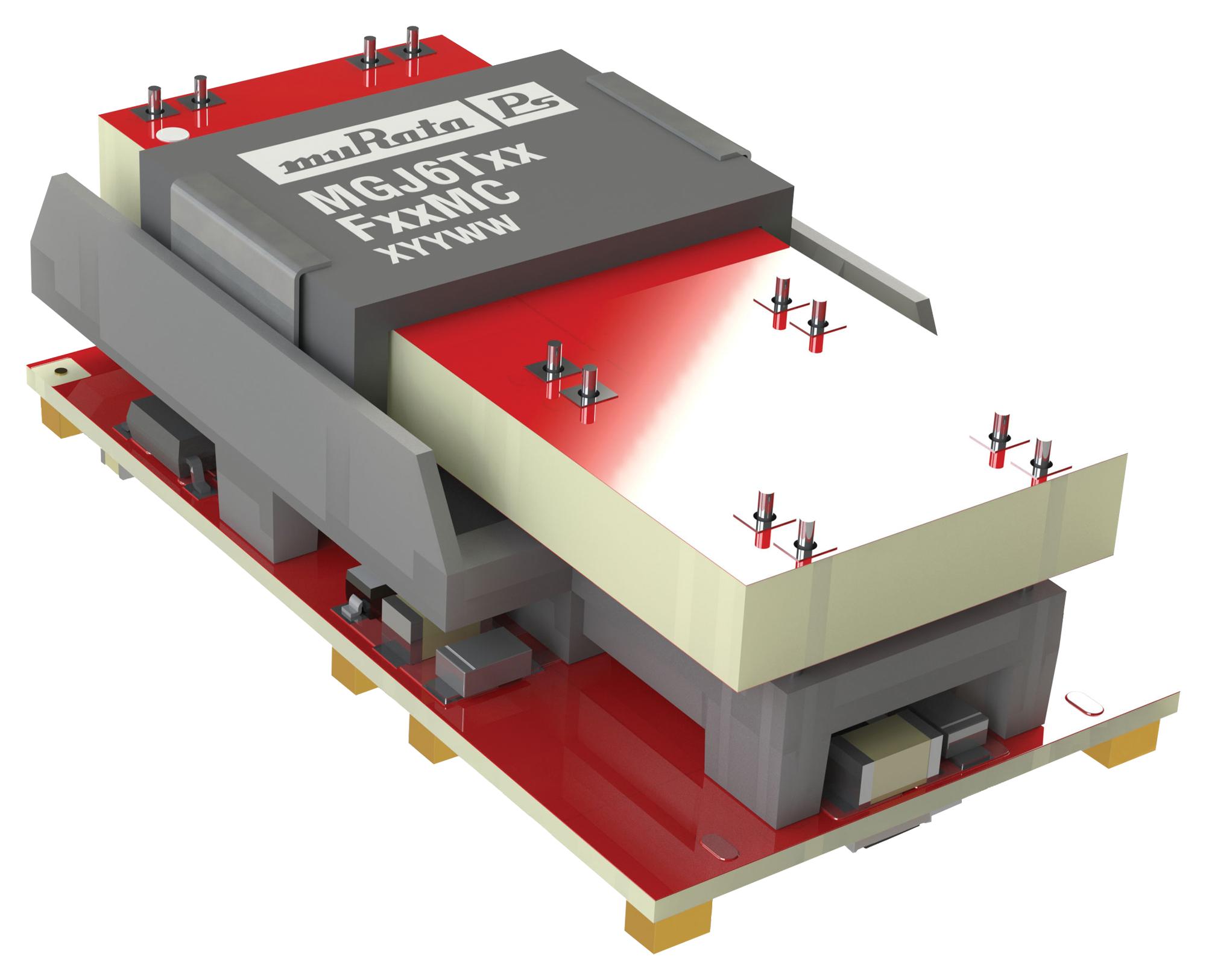

MURATA POWER SOLUTIONS MGJ6T24F24MCR7 Full Bridge Gate Drive Converter
The MGJ6T24F24MC-R7 from Murata Power Solutions is a full bridge series 5.2 kV DC isolation gate drive DC/DC converter with a power rating of 6W. It features three isolated outputs designed to power high-side and low-side gate drive circuits for IGBTs, silicon, and silicon carbide MOSFETs in half-bridge configurations. This converter is characterized by high isolation, excellent dv/dt immunity, and low coupling capacitance, making it suitable for motor drives and inverter applications. It operates with an input voltage range of 18V to 36V, providing two 24V/62.5mA outputs and one 24V/125mA output, supporting up to 3W power on one channel and 1.5W on others. The device boasts an efficiency of 85%, minimal ripple noise, and a maximum operating temperature of 105°C.
MURATA POWER SOLUTIONS MGJ6T24F24MCR7 Full Bridge Gate Drive Converter Specifications:
- Isolation test voltage: Flash tested for 1 second at 4000 vac, qualified at 5.7KVDC for 1 minute
- Operating temperature: -40°C to +105°C
- Input voltage range: 18V to 36V
- Power rating: 6W
- Output voltages: Three isolated 24V outputs
- Output current: 62.5mA for two outputs, 125mA for the third
- Efficiency: 85%
- Ripple & noise: minimal noise specifications
- Maximum temperature: 105°C
- Dimensions: Refer to datasheet for detailed mechanical size
- Isolation capacitance: 15 pF
- Creepage & clearance: 8mm
- Protection: Short-circuit protection, under-voltage lockout
- Input ripple current: 30-45 mA depending on input type
- Input types: 18-36V
- Feature: High dv/dt immunity, low coupling capacitance
Buy the Buy Murata Full Bridge Gate Drive Part Number MGJ6T24F24MC-R7 Online
Purchase the Murata MGJ6T24F24MC-R7 full bridge series 5.2 kV DC isolation gate drive converter online today. Designed for high-side and low-side driving of IGBTs, silicon, and silicon carbide MOSFETs, this compact 6W device offers three isolated 24V outputs, high dv/dt immunity, and excellent transient response. Suitable for motor drives and inverter applications, it features robust insulation, a maximum operating temperature of 105°C, and high efficiency. Ensure your projects benefit from reliable power switching with this cost-effective solution, available for quick delivery and competitive pricing.
Order your Murata series MGJ6T24F24MC-R7 high isolation gate drive converter today and ensure reliable power switching for your motor drives and inverters.
