MURATA POWER SOLUTIONS 78210035JVC Converter Transformer
The 782100 series of converter transformers are specially designed to work with the pSemi PE22100 chip set, providing isolated power supplies for transceivers in interface applications. These transformers feature toroidal construction, industry-standard pinouts, and UL 94V-0 package materials. They are tested for isolation up to 4kV, operate within -40°C to 85°C, and can withstand peak reflow soldering temperatures of 245°C. Suitable for industrial use, these compact transformers ensure reliable electrical isolation with minimal leakage inductance and inter-winding capacitance, supporting high-voltage transient immunity and safety compliance in various electronic systems.
MURATA POWER SOLUTIONS 78210035JVC Converter Transformer Specifications:
- Operating temperature range: -40°C to 85°C
- Storage temperature range: -50°C to 125°C
- Isolation voltage: 4kV
- Peak wave reflow temperature: 245°C
- Material: UL 94 V-0 package materials, matte tin pin finish
- Package types: DIL and SM with industry-standard pinout
- Primary inductance (typical): 150–335 Ht at 110–203 Ht
- Leakage inductance (max): 8 Ht
- Inter-winding capacitance: 8 pF
- DCR (max): 600 mΩ
- Voltage ratio options: 1.33:1, 1.14:1, 2.14:1, 1.33:1
- Reel quantity: 500 for SMT version
- Dimensions: DIL package - approx. 12.7mm x 7.7mm; SM package - approx. 9.14mm x 6.35mm
- Design for industrial and commercial applications, not for safety-critical systems

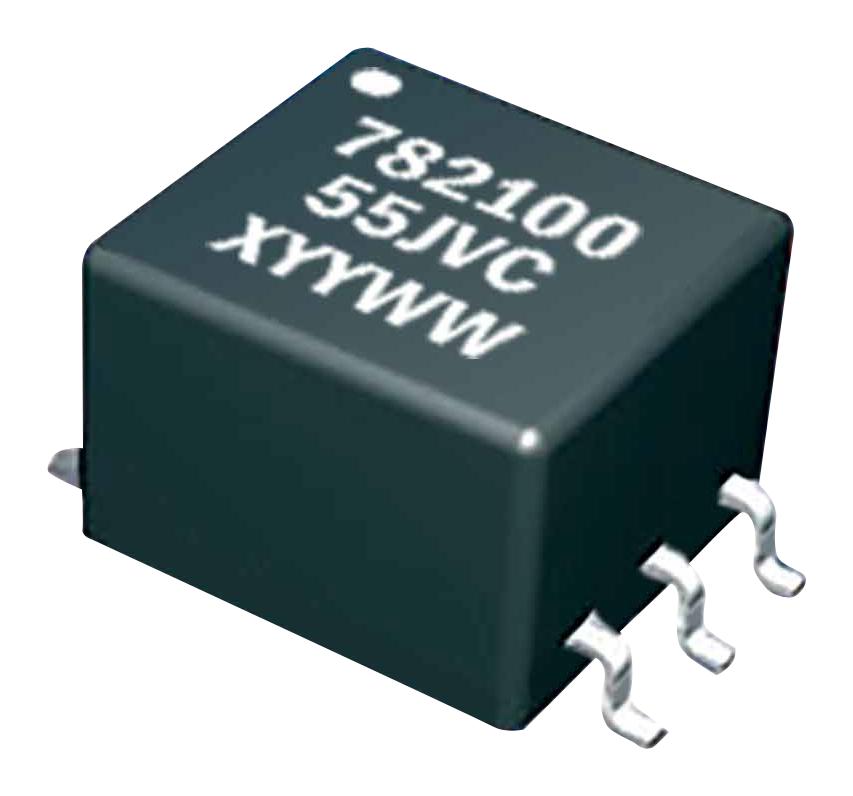

Buy the Buy Murata PE22100 Converter Transformers Part Number 78210035JVC Online
Purchase the Murata PE22100 Converter Transformer today and ensure robust electrical isolation for your transceivers and interface circuits. Designed with toroidal construction, it offers 4kV isolation, operates within -40°C to 85°C, and withstands peak reflow temperatures of 245°C. Available in DIL and SMT packages with industry-standard pinouts, these high-quality transformers support demanding industrial environments with low leakage inductance and excellent voltage ratio options. Reliable, compact, and compliant with RoHS, they are ideal for modern electronic systems requiring isolation and safety.
Get Murata PE22100 converter transformer today—built for reliable electrical isolation and industrial-grade performance.
