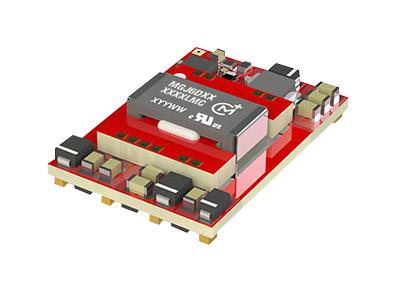

MURATA POWER SOLUTIONS MGJ6D052005LMCR7 Industrial DC-DC Converter
The MGJ6-14mm series comprises high-efficiency, isolated 6W DC-DC converters designed for industrial applications. Featuring reinforced isolation to 690VAC, creepage and clearance of 14mm, and operation at up to 105°C, these modules are ideal for high-side gate drive circuits, motor drives, and inverters. They provide configurable dual outputs such as +15V/-10V, +20V/-5V, and +15V/-5V, optimized for IGBT, SiC & MOSFET circuits. With extensive safety approvals including UL60950 and pending IEC61800-5-1 recognition, these converters ensure reliable, safe operation in demanding environments.
MURATA POWER SOLUTIONS MGJ6D052005LMCR7 Industrial DC-DC Converter Specifications:
- Input Voltage Range: 4.5-9V, 9-18V, or 18-36V depending on model
- Output Power: 6W
- Isolation Voltage: 10.2kVDC test voltage, reinforced insulation to 690VAC
- Creepage and Clearance: 14mm
- Operating Temperature Range: -40°C to 105°C
- Maximum Temperature Rise: 20°C above ambient at full load
- Efficiency: Up to 80% at nominal load
- Input Ripple Current: 20-50mA depending on input voltage
- Fusing: External UL recognized fuse recommended, rated 4A at 5V, 2A at 12V, 1A at 24V input
- Protection: Short-circuit protection, under-voltage lockout
- Safety Approvals: UL60950, Pending IEC61800-5-1 recognition
- Mechanical Dimensions: Refer to detailed datasheet with dimensions in mm
- Enclosure: Molded plastic with reinforced insulation rating
- Dimensions: Approximate length 45mm, width 20mm, height 15mm
Buy the Murata MGJ6D052005LMCR7 – Reliable High-Voltage Gate Drive for Industrial Applications
Purchase the Murata MGJ6D052005LMCR7 online today to ensure your industrial systems benefit from high-quality, reliable isolation and configurable outputs. Designed for high-side gate drive circuits, motor drives, and inverters, this 6W high-voltage converter offers reinforced insulation up to 690VAC, efficient performance, and a wide temperature range. Easy to integrate with external fuses for safety, all models are UL listed. Ensure your equipment operates safely and efficiently by ordering directly from authorized online channels today.
Get Murata MGJ6D052005LMCR7 today—built for high isolation, configurable outputs, and maximum reliability in demanding industrial environments.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MGJ6D052005LMCR7?
You can click on the BUY or RFQ button to purchase MGJ6D052005LMCR7 from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MGJ6D052005LMCR7?
You can download the MGJ6D052005LMCR7 datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MGJ6D052005LMCR7?
MURATA POWER SOLUTIONS
