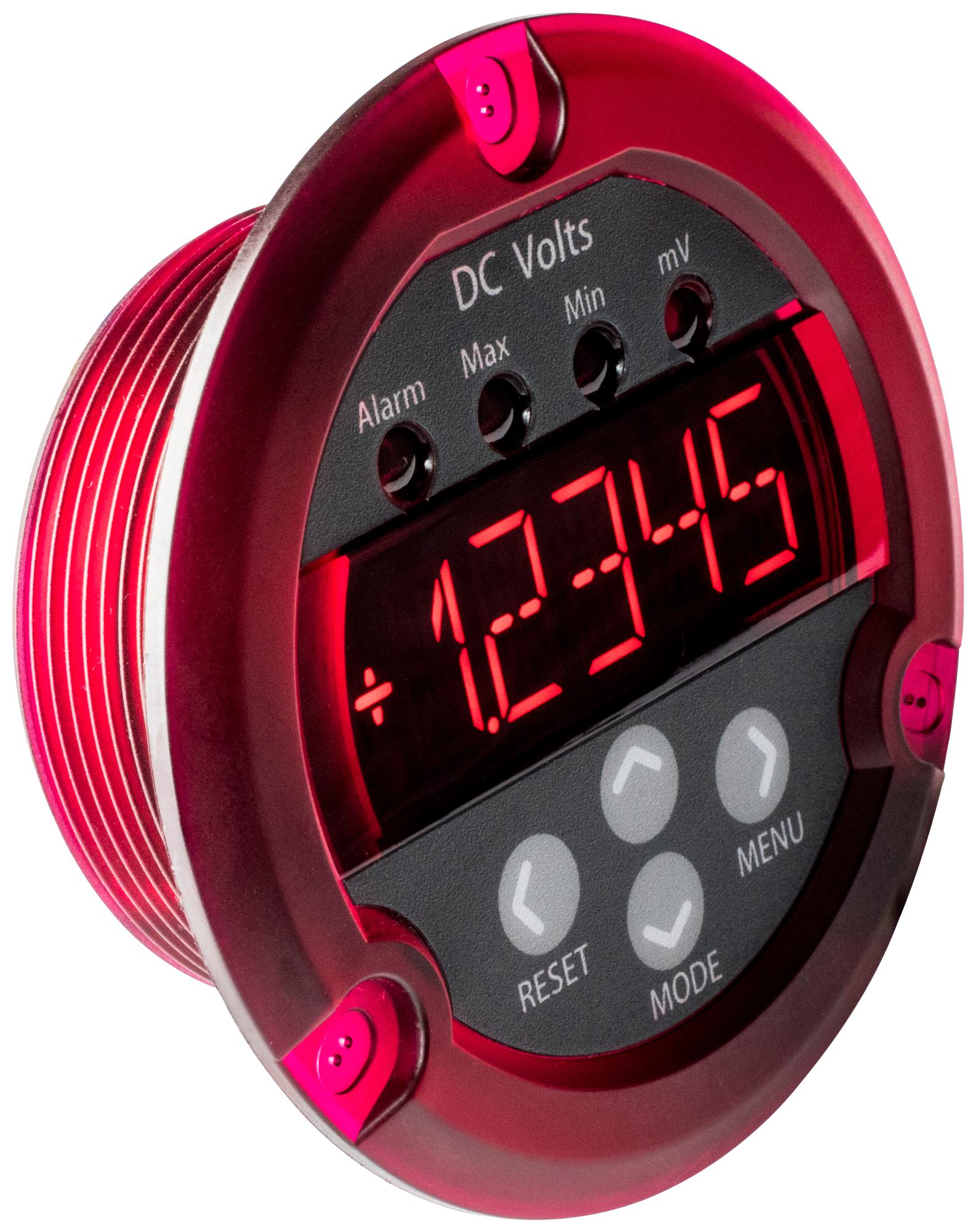

MURATA POWER SOLUTIONS DMR30DCV11DC4RC Precision DC Voltmeter
The MURATA POWER SOLUTIONS DMR30-DCV1 digital panel meter provides precise DC voltage measurements with selectable ranges of +/-200mV, +/-2V, and +/-20V. Its features include a highly visible LED display, contactless touch-sensor controls, and a solid-state alarm relay. Suitable for laboratory instrumentation, factory automation, and applications requiring precise DC voltage monitoring, the DMR30-DCV1 offers a rugged polycarbonate housing and convenient mounting options. It operates on a 9-32VDC supply and features a wide common-mode input range, simplifying integration into various systems.
MURATA POWER SOLUTIONS DMR30DCV11DC4RC Precision DC Voltmeter Specifications:
- Measurement ranges: ±200mVDC; ±2VDC; ±20VDC
- Accuracy: 0.05% Full-Scale
- Temperature Stability: 0.005%/°C
- Input Impedance: 1 MΩ
- Common Mode Rejection Ratio: 100 dB
- Absolute Maximum input voltage (+VIN to–VIN): -40 to +40 V
- Absolute Maximum input voltage (either +VIN or–VIN to–VS): -48 to +48 V
- Operating Supply Voltage: 9 to 32 VDC
- Absolute Maximum Supply Voltage: -1 to +34 VDC
- Operating Supply Current (12V operation): 40 mA
- Operating Supply Current (24V operation): 25 mA
- Display Type: 5 Digit Alphanumeric LED
- Display Height: 11.4mm (0.45in)
- User Controls: Four capacitive touch sensors (<UP>, <DOWN>, <LEFT>, <RIGHT>)
- Display Modes: Normal, Max Voltage, Min Voltage
- Over-range Indication: Flashing Value
- Display Update Rate: 2.5 updates/sec
- Relay ‘Off’-state voltage: -40 to +40 V
- Relay ‘On’-state current: -250 to +250 mA
- Relay ‘On’state resistance: 1 Ω
- Wire Size: 14-24 AWG
- Screw Tightening Torque: 0.4 N-m (3.5 lb-in)
- Operating Temperature: 0 to +50 ⁰C
- Storage Temperature: -40 to +75 ⁰C
- Humidity: 0 to 85 % (non-condensing)
