MURATA POWER SOLUTIONS DMS20PC0524RLC Process Control Monitor

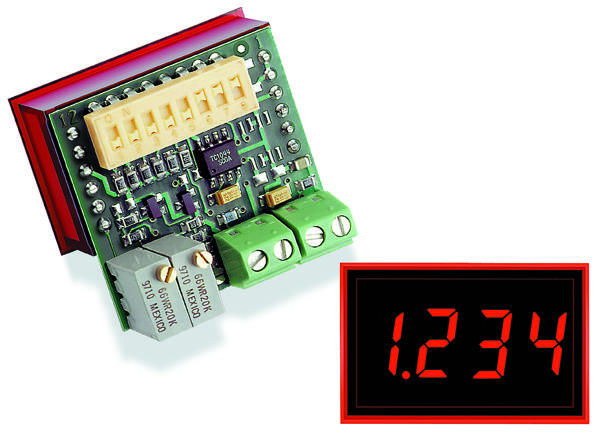

The DMS-20PC-0/5-24RL-C is a 3.5-digit LED process control monitor with precise gain and offset adjustments via onboard 20-turn potentiometers. It features a customizable range and decimal point selection using an 8-position, vibration-resistant, gold-plated DIP switch. Power and signal connections are secured with reliable screw terminal blocks, supporting various input voltages and output configurations. The high input impedance of 100kΩ and low-power red LED indicator ensure efficient operation. Designed for automation and process control, it performs reliably within 0 to 60°C, offering multiple configuration options for diverse industrial applications.
MURATA POWER SOLUTIONS DMS20PC0524RLC Process Control Monitor Specifications:
- Display Type and Size: 3.5-digit, 0.37 inches / 9.4 mm high LED
- Input Impedance: 100kΩ
- Input Range: 0-5V, 0-10V options with adjustable span and zero
- Calibration Adjustment: Onboard 20-turn potentiometers for gain and offset
- Range Setting: 8-position vibration-resistant, gold-plated DIP switch
- Electrical Connection: Screw terminal blocks for power and signal input
- Operating Temperature: 0 to 60°C
- Storage Temperature: -20 to +75°C
- Humidity: 0-95% non-condensing
- Case Material: Polycarbonate
- Weight: 17 grams / 0.6 ounces
- Power Supply: Various options including +5V and +5V to +40V models
- Protection: Overvoltage protection up to ±40V
- Environmental Resistance: Bezel assembly with gasket for dust/moisture resistance
Buy the Buy Murata Process Control Monitor Part Number DMS20PC0524RLC Online
Purchase the Murata Process Control Monitor DMS20PC0524RLC online today for reliable and precise measurement in automation systems. Its adjustable span and zero, DIP switch configurations, and screw terminal connections make it highly versatile for various industrial applications. The device features a 3.5-digit LED display, high input impedance of 100kΩ, and onboard potentiometers for fine-tuning gain and offset, ensuring accurate readings across multiple input ranges. Order now and enhance your process control solutions with this compact, rugged, and versatile instrument designed for long-term reliability.
Get Murata DMS20PC0524RLC today—designed for precise measurement and durable operation in industrial environments.
