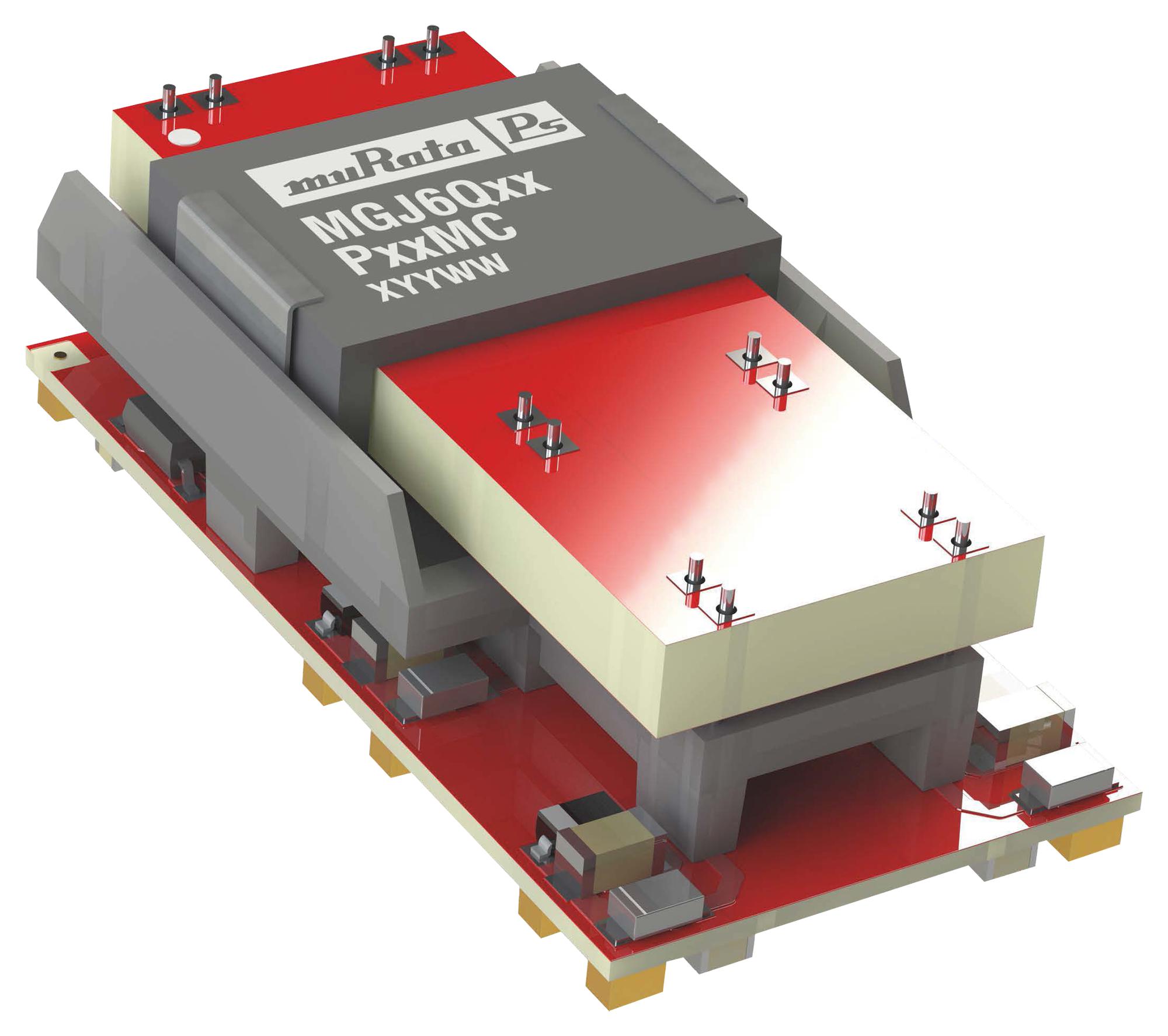

MURATA POWER SOLUTIONS MGJ6Q12P24MCR7 Three-Phase Isolated DC/DC Converter
The MGJ6Q12P24MC-R7 from Murata Power Solutions is a three-phase bridge series isolated DC/DC converter. It provides 5.2 kV DC isolation and delivers a total of 6W power across four isolated outputs. The device is designed to power high-side and low-side gate drive circuits simultaneously for IGBTs, silicon, and silicon carbide MOSFETs in half-bridge configurations. It features an input voltage range of 9V to 18V, with output voltages of 24V at currents of 42mA for outputs 1, 2, and 3, and 24V at 125mA for output 4, with total power outputs of 3W and 1W respectively. The converter offers high efficiency of 84%, minimal ripple noise of 120mVp-p, and operates reliably up to 105°C. It exhibits excellent dv/dt immunity of 80 kV/μs at 1.6 kV, DC link voltage of 3 kV, and features ultra-low coupling capacitance around 15pF. Its robust isolation and performance make it ideal for motor drives, inverters, and power management applications where multiple isolated outputs are required for IGBT and MOSFET gate drives in three-phase bridge circuits.
MURATA POWER SOLUTIONS MGJ6Q12P24MCR7 Three-Phase Isolated DC/DC Converter Specifications:
- Isolation Voltage: 5.2 kV DC
- Power Output: 6W total
- Output Voltages: 24V / 42mA, 24V / 125mA
- Input Voltage Range: 9V to 18V
- Efficiency: 84%
- Ripple & Noise: 120mVp-p
- Operating Temperature: Up to 105°C
- dv/dt Immunity: 80 kV/μs at 1.6 kV
- DC Link Voltage: 3 kV
- Coupling Capacitance: ~15pF
- Isolation Test Voltage: 5.7 kVDC (qualification test)
- Physical Form: Tape and reel packaging
- Application: Powering gate drives in motor drives and inverters
