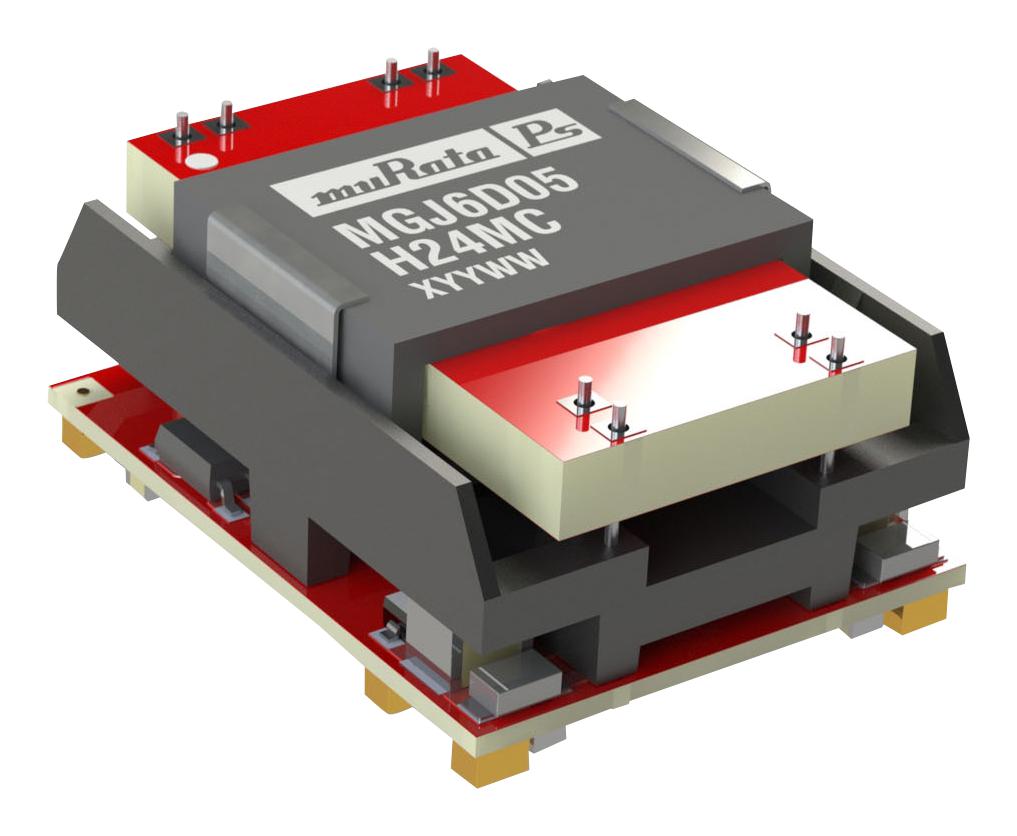

MURATA POWER SOLUTIONS MGJ6D05H24MCR7 Gate Drive Converter
The MGJ6D05H24MCR7 is a high-efficiency, isolated 6W DC-DC converter designed for gate drive applications in power electronics. Featuring reinforced insulation rated at 690VAC, it provides multiple configurable output voltages such as +15V/-10V, +20V/-5V, and +15V/-5V, suitable for IGBT, SiC, and MOSFET gate drives. It supports universal input voltage ranges of 4.5-9V, 9-18V, and 18-36V, with a maximum operating temperature of 105°C. The device is recognized by UL60950 and IEC61800-5-1 standards, ensuring safety and reliability in industrial systems.
MURATA POWER SOLUTIONS MGJ6D05H24MCR7 Gate Drive Converter Specifications:
- Input Voltage Range: 4.5-9V, 9-18V, 18-36V
- Output Power: 6W
- Output Voltages: +15V/-10V, +20V/-5V, +15V/-5V
- Isolation Voltage: 10.2kVDC, reinforced to 690VAC
- Creepage and Clearance: 14mm
- Operating Temperature: -40°C to 105°C
- Storage Temperature: -55°C to 25°C
- Maximum Operating Temperature: 105°C
- Ingress Protection: Not specified
- Fusing Options: External UL recognized fuse (5V/4A, 12V/28A, 24V/1A)
- Compliance Standards: UL60950, IEC61800-5-1 pending recognition
- Derating: Based on IPC-9592 guidelines, active up to 105°C
- Ripple & Noise: Configurable according to measurement setup
- Efficiency: Varies with load and input voltage, typically high
- Dimensions: Refer to official datasheet for detailed mechanical sizing
Buy the Murata Series MGJ6 14mm Isolated Gate Drive Converter: MGJ6D05H24MCR7
Purchase the Murata Series MGJ6D05H24MCR7 online today and enjoy dependable, high-performance electrical isolation for gate drive applications. This 6W DC-DC converter offers configurable output voltages such as +15V/-10V, +20V/-5V, and +15V/-5V all within a reinforced insulation rated at 690VAC, ideal for powering IGBT, SiC, and MOSFET circuits in industrial environments. Recognized by UL and IEC standards, it ensures safety, durability, and compliance with international safety requirements. Quick, secure online ordering guarantees fast delivery to support your critical projects.
Order your Murata Series MGJ6D05H24MCR7 today and ensure reliable, high-efficiency gate drive power conversion for your industrial systems.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MGJ6D05H24MCR7?
You can click on the BUY or RFQ button to purchase MGJ6D05H24MCR7 from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MGJ6D05H24MCR7?
You can download the MGJ6D05H24MCR7 datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MGJ6D05H24MCR7?
MURATA POWER SOLUTIONS
