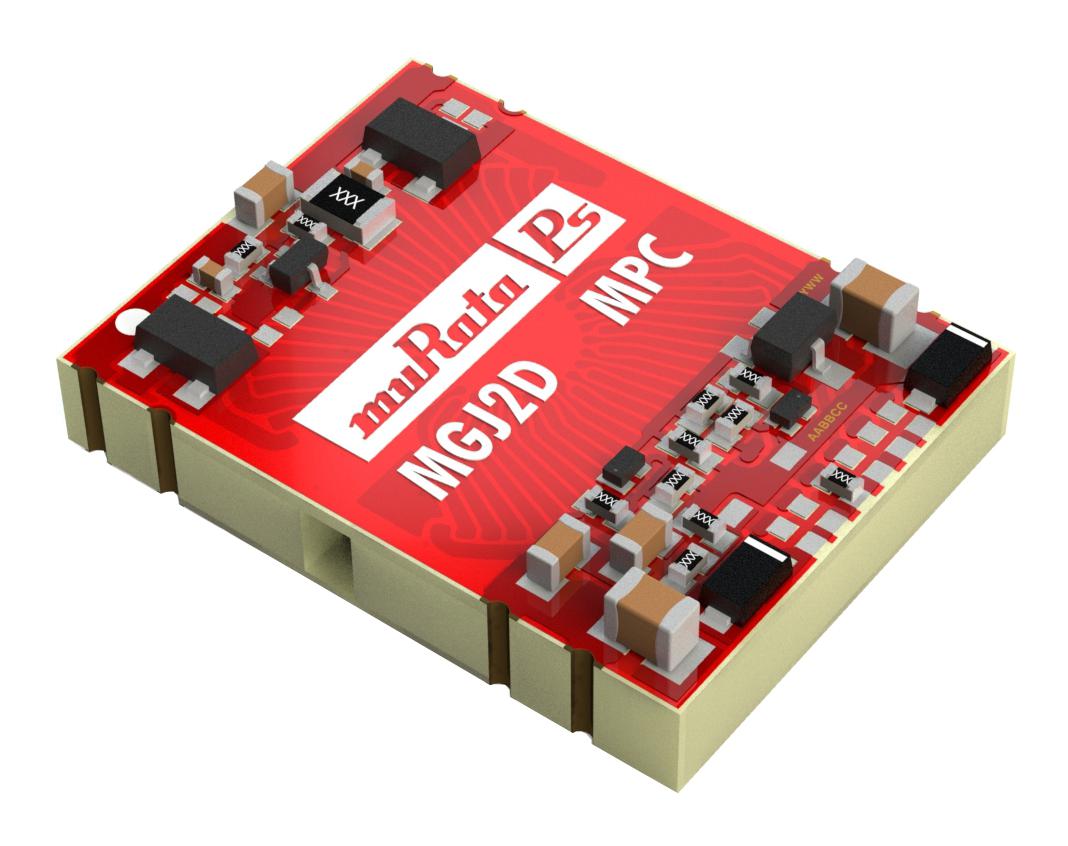

MURATA POWER SOLUTIONS MGJ2D121509MPCR7 High-Voltage Isolated Power Supply
The MGJ2 series is a 5.7 kV DC isolated power supply designed as a gate driver for IGBT, SiC, and MOSFET applications. It features optimized bipolar output voltages, high dielectric isolation with a test voltage of 5.7 kV DC, and ultra-low isolation capacitance. The surface mount package allows for easy integration, and the device operates reliably up to 100°C with derating. It also includes short circuit protection and is characterized for partial discharge performance, ensuring safe and stable operation in high-voltage environments. Yield patent protection for design security.
MURATA POWER SOLUTIONS MGJ2D121509MPCR7 High-Voltage Isolated Power Supply Specifications:
- Isolation Test Voltage: 5.7kV DC for 1 second, qualification tested at 5.7kV DC for 1 minute
- Continuous Barrier Withstand Voltage: 2.5kV
- Resistance Viso= 1000VDC: 1 GΩ
- Operating Temperature Range: -40°C to 100°C
- Storage Temperature: -40°C to 125°C
- Switching Frequency: 151505 400 kHz
- Ambient Temperature: Up to 100°C with derating
- Input Voltage: 5V, 12V, 15V
- Output Voltage: Configurable, optimized bipolar voltages for IGBT, SiC, MOSFETs
- Ripple & Noise: Low, measured with specified test configuration
- Package: Surface mount (SM), Tape and reel packaging
- Protection Features: Short circuit protection, partial discharge testing
- Certifications: Pending UL62368-1 recognition, ANSI/AAMI ES60601-1 recognition pending
- Creepage & Clearance: 9mm
- Maximum Power: 2W
- Efficiency: Typical switching frequency around 150-400 kHz
- Mechanical Dimensions: Based on tape and reel specifications, detailed in datasheet
