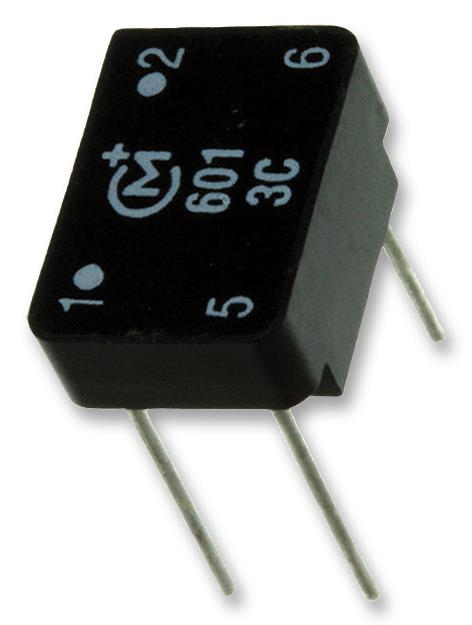

MURATA POWER SOLUTIONS 766013C Pulse Transformer
The 766 Series pulse transformers by Murata Power Solutions are toroidal, fully encapsulated devices designed for general-purpose applications such as line coupling, impedance-matching, and isolation. Suitable for small isolated power supplies or filtering in electronic circuits, these transformers feature industry-standard pinouts, high isolation voltage of 500Vac, RoHS compliance, and a choice of four configurations with inductance up to 11.7mH. They are PCB mountable with UL 94 V-0 compliant materials, ensuring reliability in various industrial environments.
MURATA POWER SOLUTIONS 766013C Pulse Transformer Specifications:
- Isolation Voltage: 500Vac
- Inductance: Up to 11.7mH
- RoHS compliant
- Package Material: UL 94 V-0
- Configuration: 4 variants
- Construction: Toroidal, fully encapsulated
- Operating Temperature Range: 0°C to 70°C
- Storage Temperature Range: -60°C to 125°C
- Pinout: Industry standard, 6-pin DIP
- Pin Pitch: 2.54 mm (0.100 inches)
- Mechanical Dimensions: Length 15.25 mm (0.60 inches), Diameter 11.00 mm (0.43 inches)
- Soldering: Peak wave temperature 300°C for 10 seconds
- Material: Enameled wire with protective insulation
- Application: Line coupling, impedance matching, isolation, power supply filtering
Buy the Murata 766 Series – Reliable Pulse Transformers for Industrial Applications
Shop the Murata 766 Series pulse transformers online now to enhance your electronic circuits with high isolation, toroidal construction, and multiple configurations. These fully encapsulated, PCB-mountable devices provide up to 11.7mH inductance and 500Vac isolation voltage. Designed for reliable impedance matching, line coupling, and filtering applications, they meet RoHS standards and feature UL 94 V-0 rated materials. Discover the quality and performance you need for your industrial electronics projects by ordering today for fast, secure delivery.
Order your Murata Series 766 pulse transformer today and ensure dependable performance in your industrial electronic projects.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS 766013C?
You can click on the BUY or RFQ button to purchase 766013C from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 766013C?
You can download the 766013C datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of 766013C?
MURATA POWER SOLUTIONS
