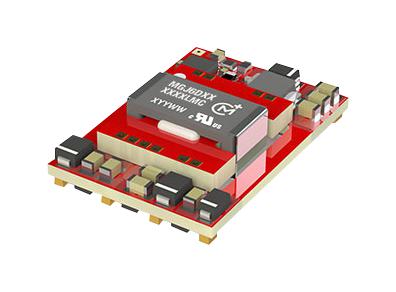

MURATA POWER SOLUTIONS MGJ6D051510LMCR7 Gate Drive Converter
The MGJ6 series offers 10.2kVDC isolated, 6W power converters designed specifically for high-side gate drive applications in industrial systems. With reinforced isolation to 690VAC, creepage and clearance distances of 14mm, and operation up to 105°C, these converters provide reliable, high-efficiency power for IGBTs, Silicon, and Silicon Carbide MOSFETs. Featuring configurable dual outputs, low switching noise, and adherence to safety standards like UL60950, they are ideal for motor drives, inverters, and power switching circuits, ensuring high performance in demanding environments.
MURATA POWER SOLUTIONS MGJ6D051510LMCR7 Gate Drive Converter Specifications:
- Input Voltage Range: 4.5V to 24V
- Output Voltages: +15V/-10V, +20V/-5V, +15V/-5V, configurable dual outputs
- Isolation Voltage: 10.2kVDC for 1 second, recognized by UL and IEC standards
- Creepage & Clearance: 14mm, reinforced insulation to 690VAC
- Operating Temperature Range: -40°C to +105°C, product temperature rise up to 20°C at 100% load
- Maximum Output Power: 6W, efficiency varies with load
- Mechanical Dimensions: Approximately 20.15mm x 13.00mm x 15.82mm
- Operating Frequency: 90-110kHz with synchronization capability
- Protection Features: Short-circuit protection, under-voltage lockout
- Compliance: UL60950, IEC61800-5-1 pending recognition, RoHS compliant
Buy the Murata MGJ6D051510LM – Reliable Gate Drive Power Supply for Industrial Applications
Enhance your power electronics with the Murata MGJ6 series gate drive converter, offering 10.2kVDC isolation and 6W capacity. Designed for high efficiency, reinforced insulation, and safety compliance, it suits motor drives, inverters, and power switching in industrial applications. Its configurable dual outputs provide flexible voltage options to optimize system performance. The compact size and high-temperature operation ensure durability in demanding environments. Buy online now to ensure reliable power solutions that meet global safety standards and improve your system’s efficiency and safety.
Buy Murata MGJ6D051510LM now and experience unmatched reliability and performance for high-side gate drive circuits in industrial environments.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MGJ6D051510LMCR7?
You can click on the BUY or RFQ button to purchase MGJ6D051510LMCR7 from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MGJ6D051510LMCR7?
You can download the MGJ6D051510LMCR7 datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MGJ6D051510LMCR7?
MURATA POWER SOLUTIONS
