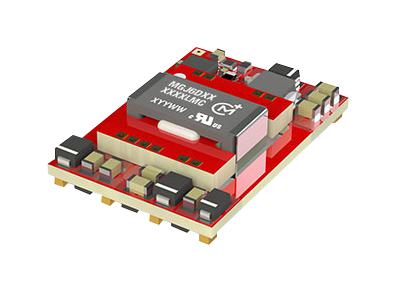

MURATA POWER SOLUTIONS MGJ6D122005LMCR7 Low Profile Gate Drive Converter
The MGJ6 series comprises low-profile, 5.7kVDC isolated 6W gate drive DC-DC converters, ideal for high-side and low-side gate drive circuits in bridge applications. Featuring configurable dual output voltages of +15V/−10V and +20V/−5V, these converters support IGBTs, Silicon, and Silicon Carbide MOSFETs. They provide reinforced insulation up to 5.7kVDC, efficient switching at 100kHz, and integrate short circuit and overload protection. Designed for reliable operation in motor drives, inverters, and high-voltage systems, they meet RoHS, UL, and IEC standards with high transient immunity and optimized layout for EMI reduction.
MURATA POWER SOLUTIONS MGJ6D122005LMCR7 Low Profile Gate Drive Converter Specifications:
- Input Voltage Range: 5V (45-9), 12V (9-18), 24V (18-36)
- Output Voltages: +15V/−10V, +20V/−5V, +15V/−5V, configured per model
- Power Rating: 6W
- Isolation Voltage: 5.7kVDC, tested at 1 second and 1 minute
- Efficiency: Up to 85%, switching frequency 100kHz
- Operating Temperature: -40°C to 105°C, storage -50°C to 125°C
- Creepage/clearance: 8mm
- Transient Immunity: dv/dt immunity up to 80kV/μs
- Surge & Inrush: Meets IEC and UL standards, with short-circuit protection
- Construction: Low profile package with recommended layout for high voltage switching
- Compliance: RoHS, UL Recognized, IEC 60601-1, UL 60950
- Start-up Time: 30ms (typical), designed for high-speed operation
- Connectors: Tape and reel packaging for automation
