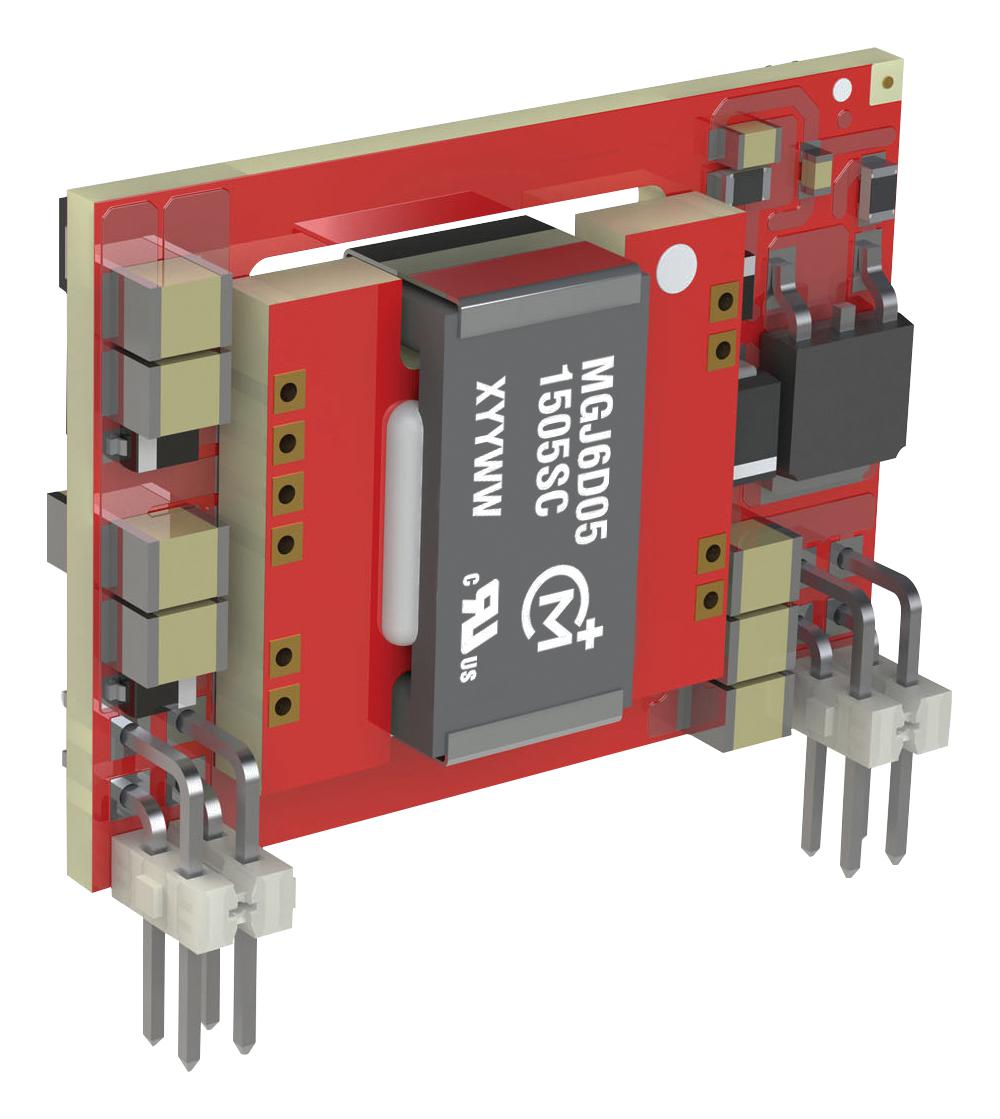

MURATA POWER SOLUTIONS MGJ6D051510SC High-Voltage Isolated DC-DC Converter
The Murata Power Solutions MGJ6D051510SC is a high-voltage, isolated DC-DC converter designed for gate drive applications. It provides 5.2kVDC isolation, up to 6W power output, and features such as no opto feedback, continuous short circuit protection, characterized dv/dt immunity at 80kV/µs, and partial discharge performance. The converter offers configurable dual output voltages, making it suitable for powering high-side and low-side gate drive circuits for IGBTs in bridge configurations. It supports asymmetric output voltages to optimize system efficiency and EMI performance. The device is characterized for high isolation and dv/dt requirements common in motor drives and inverters, with a disable/frequency synchronization pin for simplified EMC filtering. Additional features include overload protection, ultra-low coupling capacitance (15pF), 3kVDC link voltage, 100kHz switching frequency, line regulation of 2%, and total regulation of 15%. It is ideal for power management in industrial applications requiring reliable isolation and regulation.
MURATA POWER SOLUTIONS MGJ6D051510SC High-Voltage Isolated DC-DC Converter Specifications:
- Isolation Voltage: 5.2kVDC
- Power Output: 6W
- Output Voltage: Configurable dual outputs (+15V/-10V, +20V/-5V, +15V/-5V)
- Isolation Test Voltage: 10.2kVDC for 1 second, qualified at 10.2kVDC for 1 minute
- Creepage and Clearance: 14mm
- Operating Temperature Range: -40°C to +105°C
- Switching Frequency: 100kHz
- Line Regulation: 2%
- Total Regulation: 15%
- dv/dt Immunity: 80kV/µs
- Partial Discharge Performance: Meets IEC standards
- Maximum Link Voltage: 3kVDC
- Efficiency: Not specified in extracted data
- Short Circuit Protection: Continuous
- Storage Temperature: -55°C to +25°C
- Mechanical Dimensions: Refer to detailed datasheet
- Package: Tape and reel, compliant with industry standards
