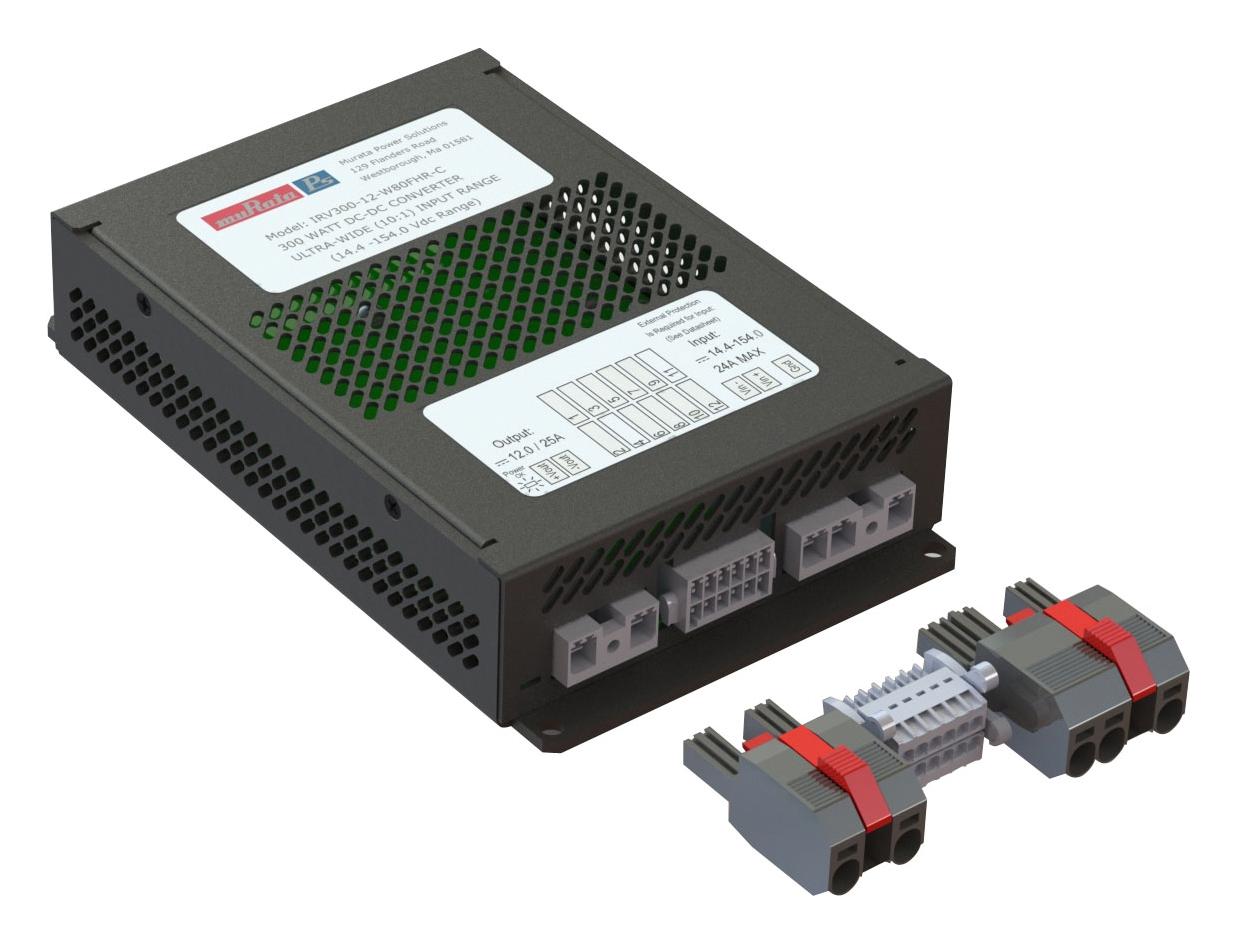

MURATA POWER SOLUTIONS IRV300MCK Industrial Railway Power Converter
The IRV300 series is a rugged, 300W, ultra wide input, chassis-mount isolated DC-DC converter designed for harsh industrial and railway environments. It features adjustable output voltages of 12V, 24V, or 54V, with an efficiency up to 92%. The series offers comprehensive protection including overtemperature, overvoltage, short circuit, and reverse polarity. Optional hold-up and redundancy features ensure reliable power continuity. Its compact, encased design adheres to railway safety standards and is optimized for demanding applications in transportation and industrial sectors.
MURATA POWER SOLUTIONS IRV300MCK Industrial Railway Power Converter Specifications:
- Input Voltage Range: 16.8-160 Vdc, Transient 12-168 Vdc (10:1 wide input)
- Output Voltages: 12V, 24V, 54V (adjustable +15%)
- Output Power: Up to 300 Watts
- Efficiency: Up to 92% at full load
- Ripple & Noise: 62-65mVp-p (depending on model)
- Protection: Overvoltage, Overtemperature, Short circuit, Reverse polarity with external fuse
- Regulation: Max 5% line and load regulation, Tight regulation for stable outputs
- Dimensions: 7.27 x 4.57 x 1.56 inches (185 x 116 x 40 mm)
- Operating Temperature: -40°C to +85°C (10 min)
- Safety & Environmental: UL IEC EN 62368-1, EN 45545 fire/smoke, RoHS compliant
- Standards Compliance: EN 50155, EN 50121-3-2, UL, CE, Demko
- Protection Features: Overtemperature shutdown, built-in protection circuitry
- Additional Options: Hold-up capability, ORing FET for redundancy
Buy the Murata Series IRV300 DC-DC Converter: 300W Ultra Wide Input 16.8-160Vdc
Purchase the Murata IRV300 series 300W ultra wide input chassis-mount DC-DC converter online. Engineered for demanding industrial and railway applications, it features adjustable outputs, high efficiency, comprehensive safety certifications, and options like hold-up and redundancy to ensure reliable power delivery in harsh environments. Its rugged design, compliance with safety standards, and advanced protection circuitry make it an excellent choice for transportation, automation, and industrial sectors. Secure your power solution today and enhance system reliability.
Get Murata IRV300 Series DC-DC converter today—built for industrial and railway environments with high efficiency and rugged protection features.
