MURATA-POWER-SOLUTIONS IRH12125T110PVFC Industrial Railway DC-DC Converter
The IRH series provides encapsulated 150-watt isolated DC-DC converters designed for harsh industrial and railway environments. It delivers regulated output voltages of 5V, 12V, or 24V with high efficiency, excellent thermal management, and reinforced insulation. Built with industry-standard half-brick package, these converters feature adjustable output voltage, remote On/Off control, overvoltage, overcurrent, and thermal protections. They operate over a wide input range of 57.6V to 160V, meeting safety and EMI standards, and are tested for shock, vibration, and damp heat for reliable long-term operation.
MURATA-POWER-SOLUTIONS IRH12125T110PVFC Industrial Railway DC-DC Converter Specifications:
- Output Power: 150 Watts
- Output Voltages: 5V, 12V, 24V
- Input Voltage Range: 57.6V to 160V
- Input Voltage Nominal: 110V
- Dimensions: 2.28x2.20x0.5 Inches (57.91x55.88x12.7 mm)
- Weight: 112 grams
- Isolation Resistance: 10 Mo
- Isolation Capacitance: 500 pF
- Switching Frequency: 200 KHz
- Efficiency: up to 91%
- Protections: Overvoltage, Overcurrent, OverTemperature, Short Circuit
- MTBF: Calculated 1300 hours x 10^6 at 25°C
- Operating Temperature Range: -40°C to +85°C
- Input/Output Safety Certification: UL, CSA, IEC 60950-1
- Mechanical Shock & Vibration: EN 61373 Grade B
- EMI Compliance: EN 50121-3-2
- Cooling: Suitable for longitudinal and transverse airflow, with baseplate options
- Safety Features: Reinforced insulation, galvanic isolation rated 3000 Vrms
- Remote On/Off Control: Negative or positive logic options, latch or non-latch modes

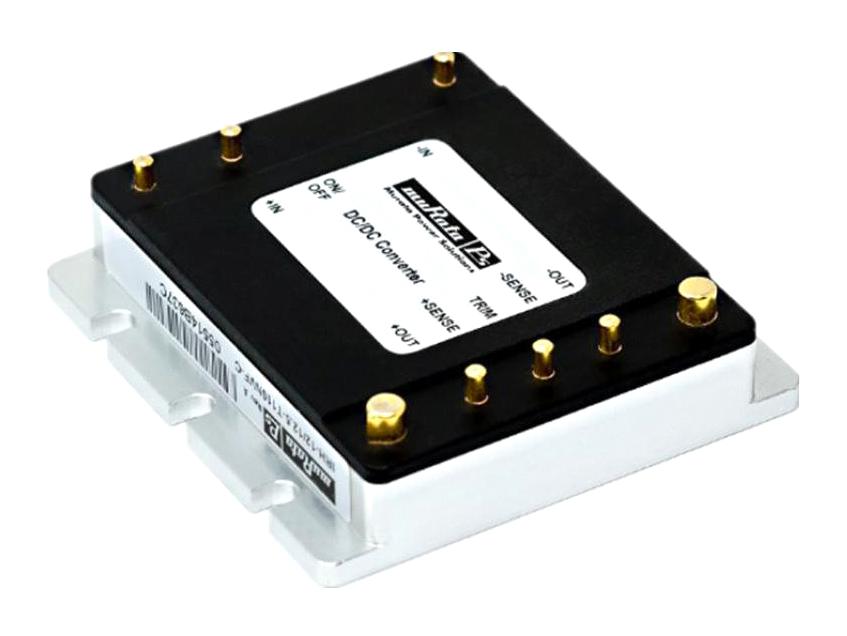

Buy the Murata Series IRH DC-DC Converter: IRH12125T110PVFC
Order the Murata IRH12125T110PVFC encapsulated 150-watt isolated DC-DC converter online today. Designed for harsh industrial and railway environments, this high-efficiency power module features reinforced insulation, wide input voltage range, and vital protections such as overvoltage, overcurrent, and thermal shutdown. Its compact size and robust construction ensure reliable operation, excellent thermal management, and compliance with safety standards. Perfect for demanding applications requiring stable power supplies, long-term durability, and advanced safety features. Purchase now for immediate integration into your system for dependable industrial power conversion.
Get Murata IRH12125T110PVFC today—built for industrial resilience, reliability, and long-lasting performance in demanding environments.
Frequently Asked Questions
Where can I buy MURATA-POWER-SOLUTIONS IRH12125T110PVFC?
You can click on the BUY or RFQ button to purchase IRH12125T110PVFC from an authorized MURATA-POWER-SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part IRH12125T110PVFC?
You can download the IRH12125T110PVFC datasheet or visit the MURATA-POWER-SOLUTIONS website for support.
Who is the manufacturer of IRH12125T110PVFC?
MURATA-POWER-SOLUTIONS
