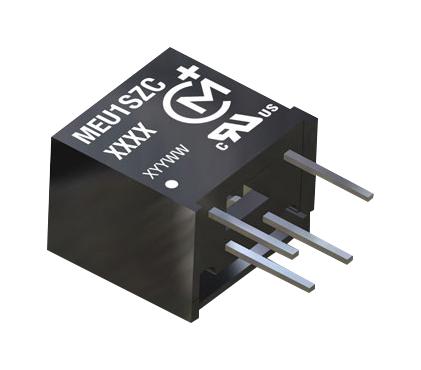

MURATA POWER SOLUTIONS MEU1S0505ZC Industrial Power Converter
This ultra miniature 1W DC/DC converter offers isolated, reliable power for industrial and control systems. Capable of operating from 3.3V, 5V, or 12V inputs with outputs at 3.3V, 5V, 9V, 12V, or 15V, it features 1KVDC isolation, efficiency up to 87%, and wide temperature performance from -40°C to 85°C. Its compact, through-hole design with PCB mounting reduces footprint by over 26%. Ideal for local power supplies, it provides galvanic isolation to minimize switching noise and enhance system reliability, suitable for demanding industrial environments.
MURATA POWER SOLUTIONS MEU1S0505ZC Industrial Power Converter Specifications:
- Input Voltage: 3.3V, 5V, 12V
- Output Voltage: 3.3V, 5V, 9V, 12V, 15V
- Power: 1W rated, up to 87% efficiency
- Isolation Voltage: 1KVDC
- Operating Temperature: -40°C to 85°C
- Voltage Regulation: See datasheet envelope for load regulation
- Switching Frequency: 85kHz
- Input Voltage Range: 2.97V to 3.63V (3.3V type), 4.5V to 5.5V (5V type), 10.8V to 13.2V (12V type)
- Start-up Time: 105-2790 µs depending on model
- Ripple & Noise: Measured with configured test setup
- Storage Temperature: -50°C to 125°C
- Physical: Through-hole, PCB mount, footprint reduction over previous designs
- Certification: UL60950 recognized, UL 60950 functional insulation, 1KVDC withstand voltage
Buy the Murata 0505ZC U+2013 Reliable Isolated Power Supply for Industrial Applications
Purchase the Murata 0505ZC power converter online today and ensure reliable, isolated power for your control systems and industrial applications. With 1KVDC isolation, up to 87% efficiency, and wide operating temperature range from -40°C to 85°C, this compact converter offers exceptional performance. Its PCB mounting and footprint reduction make integration seamless in space-constrained environments. Ideal for local power supplies, it guarantees stable operation and noise reduction, enabling your systems to function reliably in harsh industrial conditions. Shop now for fast delivery and technical support.
Buy Murata 0505ZC now and experience unmatched reliability and high efficiency power conversion for demanding industrial environments.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MEU1S0505ZC?
You can click on the BUY or RFQ button to purchase MEU1S0505ZC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MEU1S0505ZC?
You can download the MEU1S0505ZC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MEU1S0505ZC?
MURATA POWER SOLUTIONS
