MURATA POWER SOLUTIONS MYRGM180150W31RA Inductor Built-in DC/DC Converter
The MYRGM180150W31RA is an inductor built-in step-down DC/DC converter series designed for high efficiency and fast transient response. It integrates an inductor and control IC in a compact 2.5mm x 3.2mm x 1.0mm package, supporting an input voltage range of 2.7V to 5.5V and an output voltage from 0.8V to 3.6V. It features synchronous rectification at 3.0MHz, with options for PWM or automatic PWM/PFM switching control, built-in UVLO, soft-start, and protection circuits, making it ideal for portable electronics and power management applications.
MURATA POWER SOLUTIONS MYRGM180150W31RA Inductor Built-in DC/DC Converter Specifications:
- Input Voltage: 2.7V to 5.5V
- Output Voltage: 0.8V to 3.6V (fixed or adjustable via external resistors)
- Output Current: Up to 1.5A
- Oscillation Frequency: 3.0MHz
- Switching Frequency: 3.0MHz
- Control Method: PWM (fixed) or PWM/PFM auto switching
- Built-in inductor with high-speed transient response circuit
- Built-in UVLO, soft-start, current limit, thermal shutdown, short circuit protection, Ci discharge
- Package: 2.5mm x 3.2mm x 1.0mm SMD
- Efficiency: Up to 92% (at Vin=5.0V, Vout=3.3V, Iout=500mA)
- Ambient Temperature: -40°C to +105°C
- Environmentally Friendly: RoHS, Pb free, halogen free

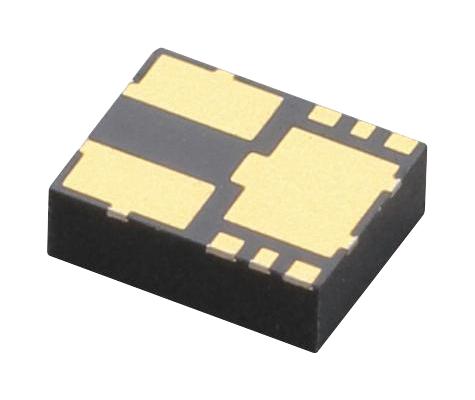

Buy the Murata Series PicoBK: MYRGM Series 180150W: 1.5A Inductor Built-in DC/DC Converter
Purchase the Murata MYRGM180150W31RA online today and experience industry-leading efficiency and reliability in power management. This highly integrated step-down converter combines an inductor and control IC in a compact package, supporting input voltages from 2.7V to 5.5V and delivering up to 1.5A of current. Perfect for portable electronics, it features synchronous rectification at 3.0MHz, offering low noise, fast transient response, and multiple protection features including UVLO and thermal shutdown. Buy now to ensure optimal performance and long-lasting durability in your designs.
Get Murata MYRGM180150W31RA today—built for efficient power regulation, fast transient response, and compact size for portable electronics.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MYRGM180150W31RA?
You can click on the BUY or RFQ button to purchase MYRGM180150W31RA from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MYRGM180150W31RA?
You can download the MYRGM180150W31RA datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MYRGM180150W31RA?
MURATA POWER SOLUTIONS
