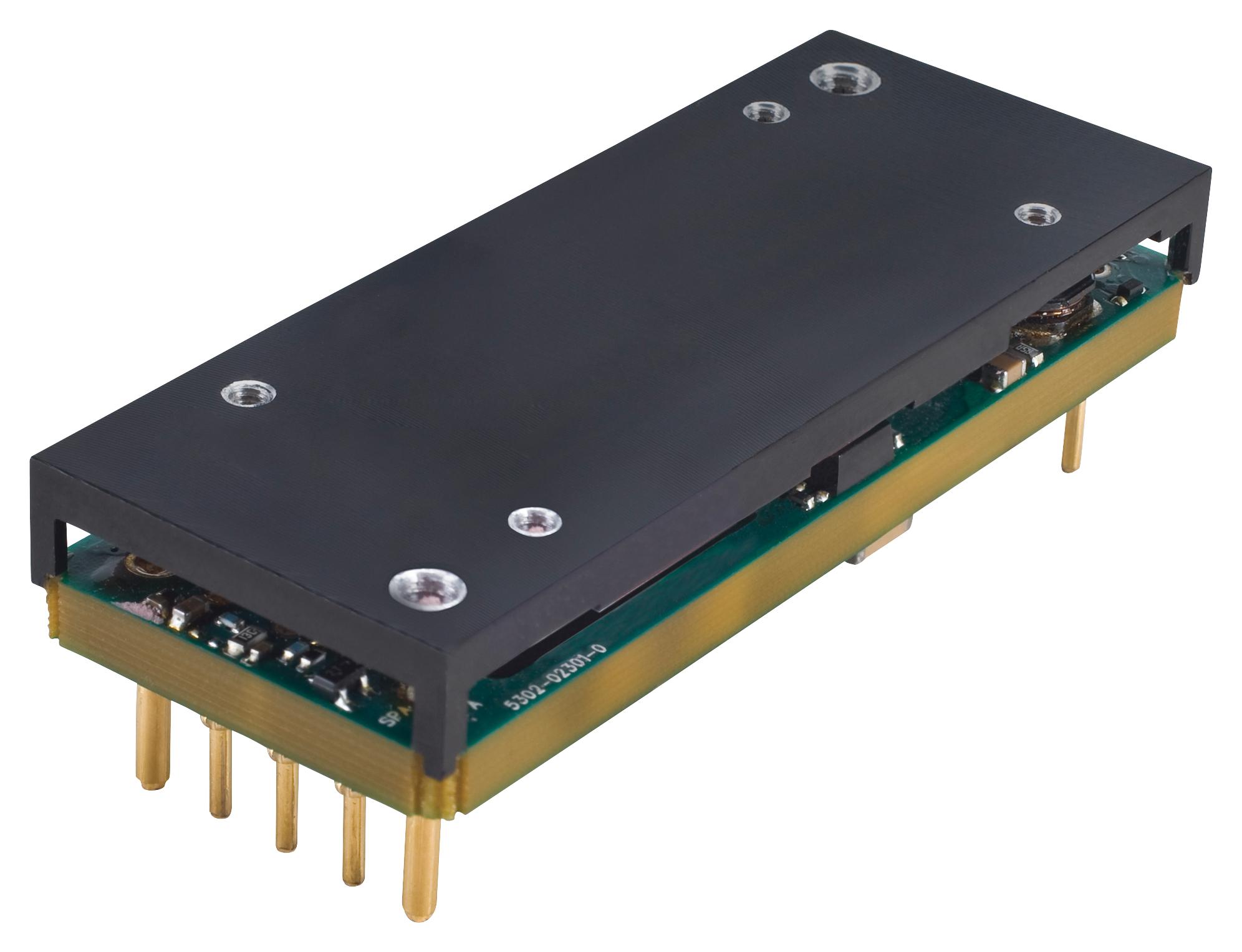

MURATA POWER SOLUTIONS UWE245Q12PBC Eighth-Brick DC-DC Converter
The UWE-012 series offers reliable, high-efficiency eighth-brick isolated DC-DC converters with wide input voltage ranges from 9V to 36V. Designed for industrial, telecom, and portable applications, these units deliver up to 120 Watts with fixed output voltages of 5V, 12V, and 24V, featuring protections such as over temperature, over current, and over voltage shutdown. They include safety certifications, optional baseplates for cooling, remote sense, and trim adjustments for precise voltage regulation. Suitable for demanding environments, they are RoHS compliant and meet all relevant safety standards.
MURATA POWER SOLUTIONS UWE245Q12PBC Eighth-Brick DC-DC Converter Specifications:
- Input Voltage Range: 9V to 36V DC
- Output Power: Up to 120 Watts
- Output Voltages: 5V, 12V, 24V (fixed)
- Efficiency: Up to 92%
- Isolation Voltage: 2250 Vdc
- Operating Temperature: -40°C to 85°C (with derating)
- Output Ripple & Noise: 200 mVp-p (20 MHz BW)
- Protection Features: Over Temperature, Over Current, Over Voltage, Short Circuit
- Dimensions: 2.30 x 0.90 x 0.40 inches (without baseplate)
- Weight: 25 grams (without baseplate)
- Certifications: UL, CSA, IEC/EN 60950-1, RoHS-6
- Switching Frequency: 240 kHz
- Remote Sense: Yes, 10% compensation
- Adjustable Output Voltage: ±10% via trim
- Cooling: Optional with baseplate for enhanced thermal management
- Input Fuse: External recommended 20A fast blow
- Protection Mode: Hiccup mode for Over Voltage, Over Current faults
Buy the Murata UWE-012 – Reliable Wide Input Isolated DC-DC Converter for Industrial Applications
Order the Murata UWE-012 series online today and enjoy high efficiency, robust protections, and flexible configuration options. These reliable isolated DC-DC converters deliver up to 120 Watts, feature fixed and adjustable outputs, and are designed for demanding industrial, telecom, and portable applications. With certifications, optional baseplates for cooling, remote sense, and comprehensive safety features, purchasing online ensures quick delivery and excellent support for your power system needs.
Buy Murata UWE-012 now and experience unmatched reliability and performance in demanding industrial and telecom environments.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS UWE245Q12PBC?
You can click on the BUY or RFQ button to purchase UWE245Q12PBC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part UWE245Q12PBC?
You can download the UWE245Q12PBC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of UWE245Q12PBC?
MURATA POWER SOLUTIONS
