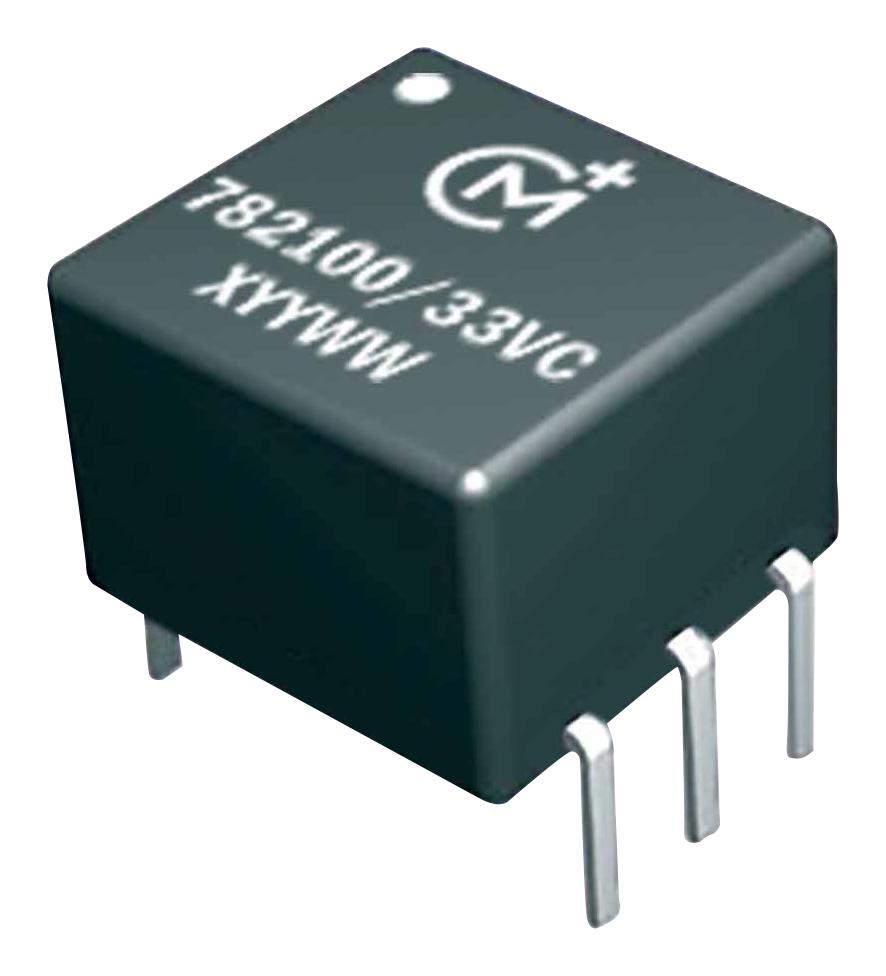

MURATA POWER SOLUTIONS 78210053VC Converter Transformer
The 782100 series converter transformers are designed for use with the pSemi PE22100 chip set, providing isolated power supplies for transceivers and interface applications. These transformers feature toroidal construction, industry-standard pinout, UL 94 V-0 package materials, and are tested for isolation up to 4kV. Available in 3.3V and 5V versions, they are compatible with SMT and DIL packages, supporting industrial temperature ranges. They are suitable for applications requiring reliable isolation, low-profile design, and high voltage withstand capability in industrial environments.
MURATA POWER SOLUTIONS 78210053VC Converter Transformer Specifications:
- Primary Inductance: 190-335 µH (typical at 100kHz, 20mV)
- Leakage Inductance: 5-8 µH
- Inter winding Capacitance: 8 pF at 100kHz
- Primary D.C. Resistance: <0.1VDC at 600mA
- Volt-time Product: 13-25 Vµs depending on model
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -50°C to 125°C
- Peak Wave Solder Temperature: 260°C for 10s
- Max Reflow Temperature: 245°C
- Isolation Voltage: Up to 4kV
- Package Types: 6-pin DIL and SMT
- Tube Quantity: 50 units, Reel Quantity: 500 units
- Package Material: Matte tin, RoHS compliant
- Dimensions: DIL package approx. 12.70mm x 7.75mm, SMT package approx. 12.70mm x 9.12mm
- Max Pulse Voltage: 18-25 Vµs depending on model
Buy the Murata 782100 Series – Reliable Isolated Transformer for Industrial Applications
Purchase the Murata 782100 series converter transformers online now to guarantee your transceiver and interface applications operate with dependable isolation. These transformers are designed for industrial applications, featuring toroidal construction, industry-standard pinouts, UL 94 V-0 package materials, and tested for high voltage withstand up to 4kV. Available in 3.3V and 5V versions with SMT and DIL options, they ensure reliable performance, safety compliance, and durability in demanding environments. Order now to secure fast delivery and seamless integration into your systems.
Order your Murata 782100 transformer today and ensure robust isolation for transceiver projects in industrial environments.
