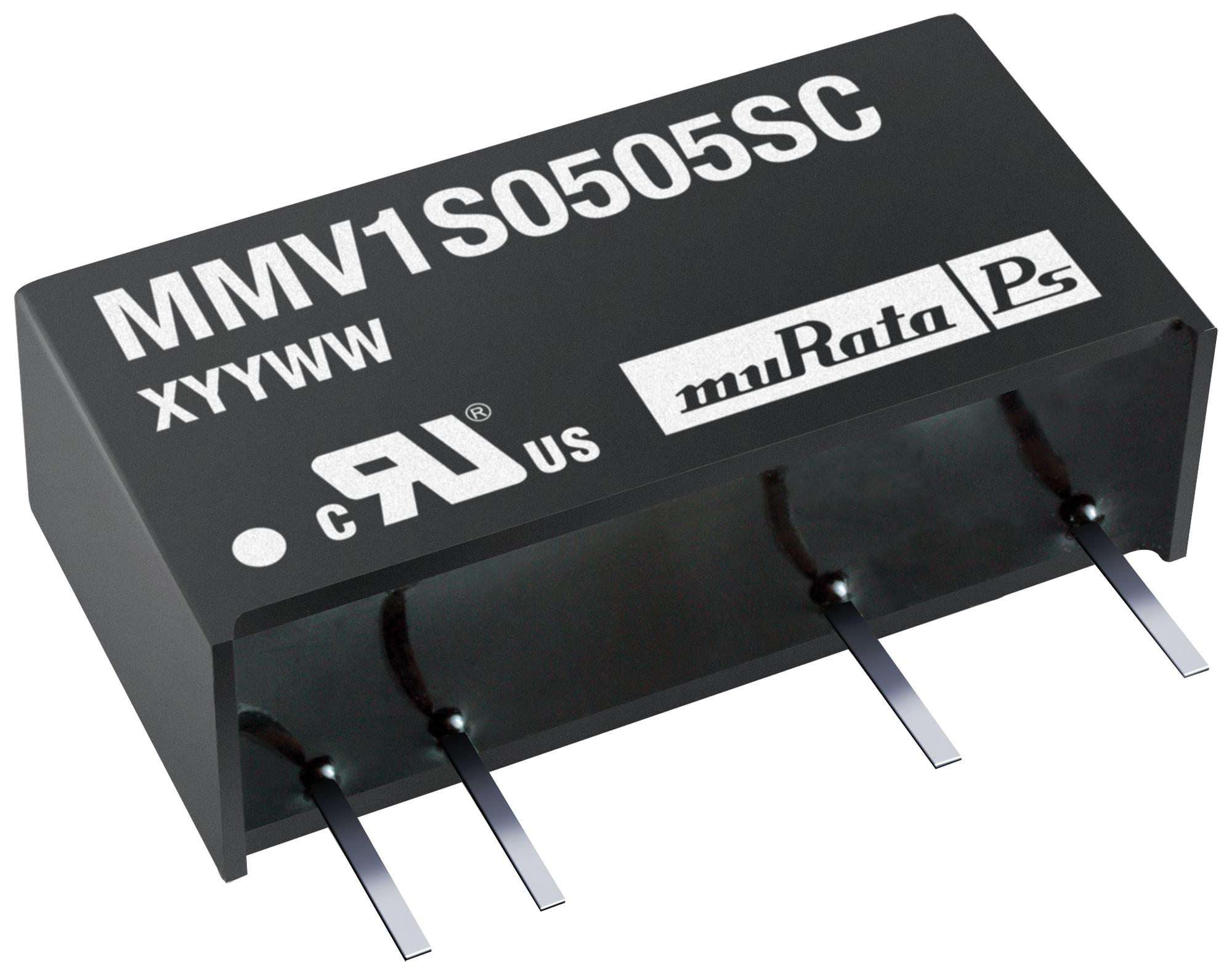

MURATA POWER SOLUTIONS MMV1S0505SC Power Converter
The MMV1S series offers high-efficiency, 1W isolated DC/DC converters with short circuit protection, wide temperature range from -40°C to 85°C, and UL 94V-0 package. Featuring internal SMD construction, 3kVDC isolation verified through a 'Hi Pot' test, and encapsulated with toroidal magnetics, these converters require no external components, electrolytic, or tantalum capacitors. Certified under UL 60950, they operate effectively from zero load, making them ideal for demanding industrial applications needing reliable power conversion and robust insulation.
MURATA POWER SOLUTIONS MMV1S0505SC Power Converter Specifications:
- Voltage range: 45V to 55V continuous operation
- Isolation test voltage: 3kVDC (1 minute)
- Operating temperature: -40°C to 85°C
- Input current at short circuit: 45mA (0524 variant)
- Output power: 1W
- Ripple & noise: 5mVp-p max
- Switching frequency: 88kHz
- Lead temperature: 260°C for 10 seconds
- Dimensions: 19.50mm x 7.0mm x 10.0mm
- Case material: UL 94V-0 plastic
- Encapsulation: Fully sealed with toroidal magnetics
- Efficiency: Typical 78%
- Protection features: Short circuit auto-resetting, foldback current limiting
- Isolation resistance: 10^9 ohms at 1000VDC
- Fuses: UL recognized, rated at 0.375A (0505) or 0.44A (0524)
Buy the Murata 0505 U–2013 Reliable Power Converter for Industrial Applications
Purchase the Murata MMV1S0505SC series online today and guarantee your industrial systems operate with reliable, high-efficiency power conversion. Designed for robust performance across wide temperature ranges, these converters feature short circuit protection, internal encapsulation, and UL certification. Ideal for demanding environments, they provide guaranteed isolation and optimal power delivery without external components. Secure your supply chain by ordering this trusted power solution online now and enjoy fast delivery, consistent quality, and peace of mind in your critical applications.
Order your Murata Series MMV1S0505SC high-efficiency power converter today and ensure your industrial projects benefit from reliable, isolated power solutions.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MMV1S0505SC?
You can click on the BUY or RFQ button to purchase MMV1S0505SC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MMV1S0505SC?
You can download the MMV1S0505SC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MMV1S0505SC?
MURATA POWER SOLUTIONS
