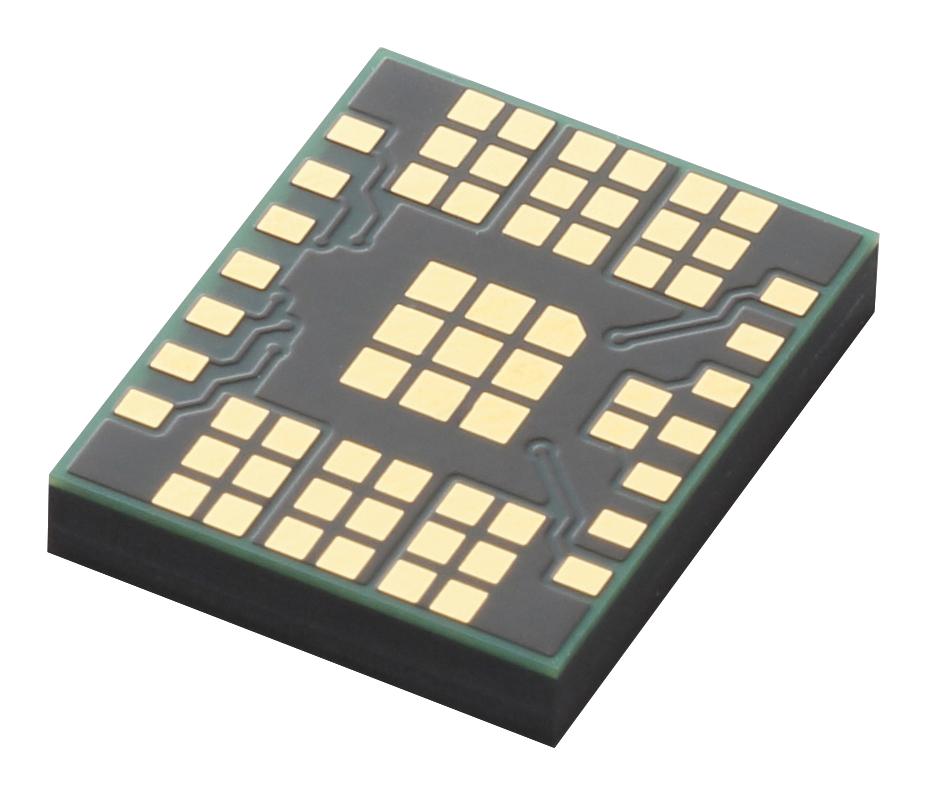

MURATA POWER SOLUTIONS MYMGC3R32EFPF2RB Multi-Output Power Module
The MYMGC3R32EFPF2RV series are miniature, high-efficiency, multi-output, non-isolated Point-of-Load DC-DC converters designed for embedded applications. Measuring only 11.9x15.0x2.4 mm, these modules support input voltages from 4.3 to 5.5Vdc and deliver up to 3.3V outputs with efficiencies reaching 91%. They feature On/Off control, Power Good signal, under-voltage lockout, short circuit, and over-current protection, making them ideal for powering FPGAs, CPUs, and telecom systems in space-constrained environments.
MURATA POWER SOLUTIONS MYMGC3R32EFPF2RB Multi-Output Power Module Specifications:
- Dimensions: 11.9x15.0x2.4 mm
- Input Voltage Range: 4.3 to 5.5 Vdc
- Output Voltage: 3.3V
- Efficiency: up to 91%
- Output Current: 2.5A per output
- Protection: Under-voltage lockout, short circuit, over-current
- Control: On/Off, Power Good signal
- Operating Temperature Range: -40°C to +125°C
- Derating: Max current reduced at higher ambient temperatures
- Certifications: UL, CSA, IEC/EN60950-1 compliant
- High thermal derating performance with heat shock resistance
- Surface mount package for easy integration in compact systems
Buy the Buy Murata MYMGC3R32EFPF2RV Series Part Number MYMGC3R32EFPF2RV Online
Discover the Murata MYMGC3R32EFPF2RV series, miniature multi-output DC-DC power modules designed for high efficiency and reliability in space-constrained embedded systems. With a compact size of 11.9x15.0x2.4 mm, they support input voltages from 4.3 to 5.5V and deliver up to 3.3V outputs with efficiencies reaching 91%. Featuring On/Off control, Power Good signals, and comprehensive protection, these modules are ideal for powering FPGAs, CPUs, and telecom hardware in demanding environments. Purchase online today for reliable, space-saving power solutions.
Get Murata MYMGC3R32EFPF2RV today—built for precision, space-saving design, and long-lasting durability in embedded power solutions.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MYMGC3R32EFPF2RB?
You can click on the BUY or RFQ button to purchase MYMGC3R32EFPF2RB from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MYMGC3R32EFPF2RB?
You can download the MYMGC3R32EFPF2RB datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MYMGC3R32EFPF2RB?
MURATA POWER SOLUTIONS
