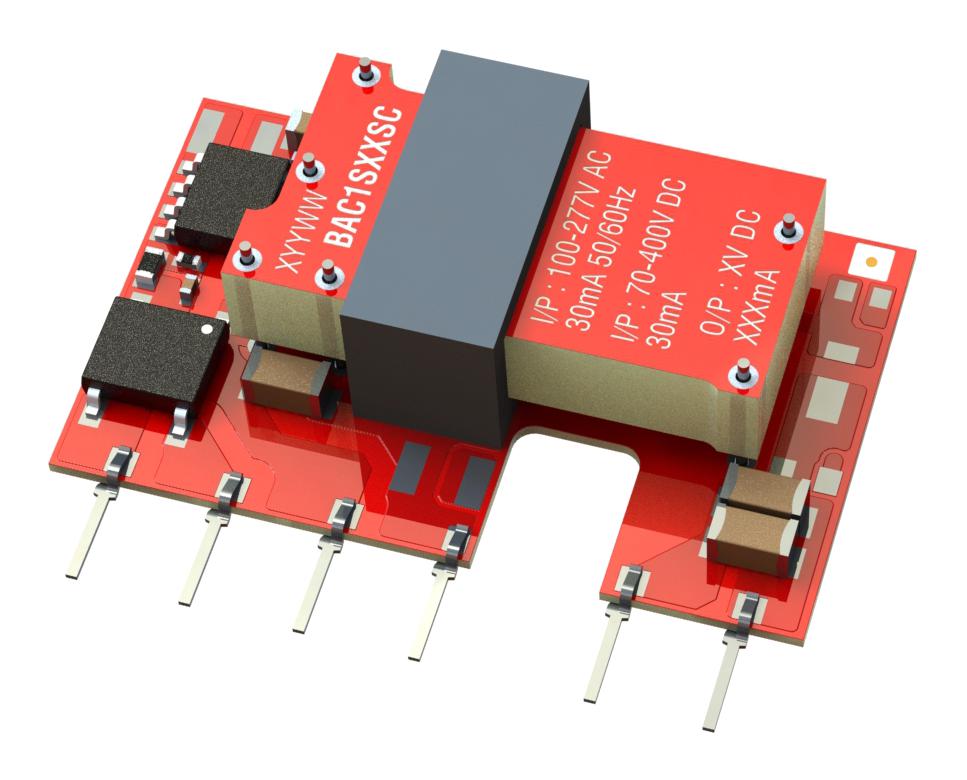

MURATA POWER SOLUTIONS BAC1S12SC Single Output Power Converter
The BAC1 series are isolated 1W regulated AC/DC power converters designed for industrial applications. Operating from wide input voltage ranges of 85-305VAC and 70-400VDC, they support outputs of 5V, 12V, and 24V with high efficiency up to 74%. These converters feature reinforced insulation, low standby power consumption, and robust safety certifications including UL60950-1 and EN60950-1. They operate reliably in harsh environments from -40°C to +85°C, provide comprehensive protections against short circuits, and have low leakage currents. Suitable for demanding power supply needs in automation, industrial control, and medical systems.
MURATA POWER SOLUTIONS BAC1S12SC Single Output Power Converter Specifications:
- Power Rating: 1W
- Output Voltages: 5V, 12V, 24V
- Input Voltage Range: 85-305VAC / 70-400VDC
- Efficiency: Up to 74%
- Isolation Voltage: 4KVAC (production tested for 3 seconds)
- Operating Temperature Range: -40°C to +85°C
- Short-circuit Protection: Continuous
- Working Altitude: Up to 5000m
- Certifications: UL60950-1, EN60950-1 recognition pending, UL recognition to ANSVAAMI ES60601-1
- Isolation Resistance: 100 MΩ at 1000VDC
- Leakage Current: 1 μA at 230VAC
- Storage Temperature Range: -40°C to +125°C
- Mechanical Dimensions: Customizable footprint, pin pitch 2.54mm, weight approx 6.29g
- Protection Features: Short circuit, overvoltage, and overcurrent protections
- Standby Power Consumption: 58-92 mW depending on model
Buy the Murata BAC1 Series – Reliable Isolated Power Conversion for Industrial Applications
Upgrade your industrial power supply with Murata BAC1 series AC/DC converters. Featuring wide input voltage, low standby power, and reinforced insulation, these 1W power modules ensure reliable operation from -40°C to +85°C. Perfect for automation, control systems, and medical equipment, they provide high efficiency and certifications for safety standards. Buy online now for fast delivery and seamless integration into your industrial applications, trusting Murata’s technical excellence and dependable performance.
Buy Murata BAC1S12SC now and experience unmatched reliability and high efficiency for embedded industrial power supply needs.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS BAC1S12SC?
You can click on the BUY or RFQ button to purchase BAC1S12SC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part BAC1S12SC?
You can download the BAC1S12SC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of BAC1S12SC?
MURATA POWER SOLUTIONS
