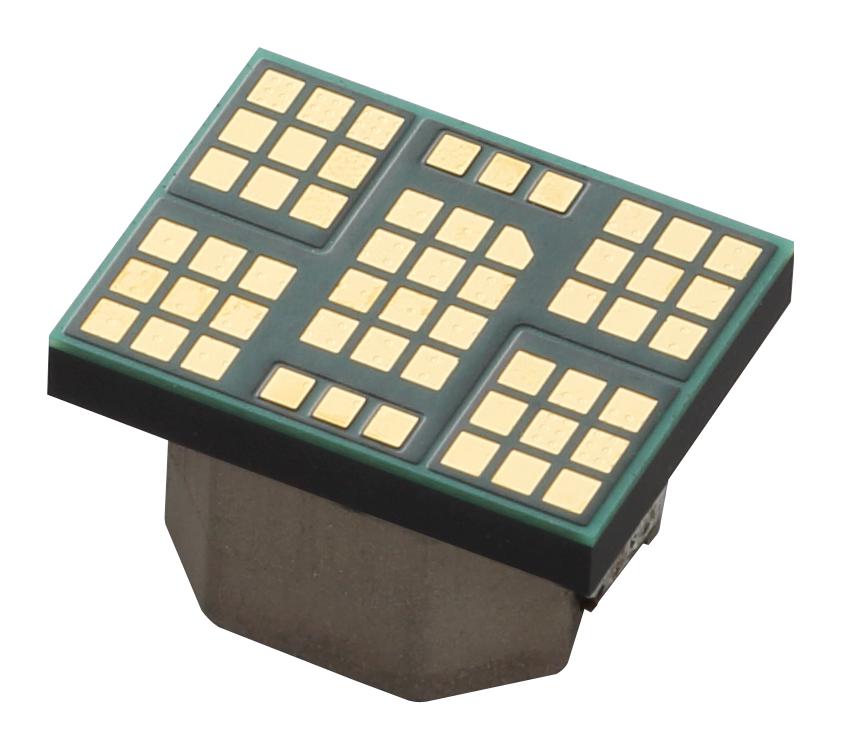

MURATA POWER SOLUTIONS MYSGK4R030ERSR Power Converter
The Miniature Mono BK, a compact Mono Block type non-isolated PoL DC-DC converter, is ideal for embedded systems and application-specific power supplies. It offers rapid transient response, high efficiency up to 94.4%, and operates over a wide input voltage range of 4.5 to 15.0V with adjustable output voltage from 0.7 to 4.0V. The small surface-mount package measures 14.0x11.0x8.3mm, incorporates robust protections such as UVLO and short circuit, and withstands high thermal cycles. Designed for reliability and thermal efficiency, it suits FPGA/CPU power, telecom, and datacom systems, featuring settable output, On/Off control, Power Good signal, and heat shock endurance of 700 cycles.
MURATA POWER SOLUTIONS MYSGK4R030ERSR Power Converter Specifications:
- Input Voltage Range: 4.5 to 15.0V
- Output Voltage Range: 0.7 to 4.0V (settable via external resistor)
- Maximum Output Current: 30A
- Efficiency: up to 94.4%
- Package Dimensions: 14.0 x 11.0 x 8.3 mm
- Operating Temperature: -40°C to +125°C (thermal cycles tested)
- Protections: UVLO, output short circuit, over-current
- Switching Frequency: 425 kHz
- Ripple and Noise: minimized with external capacitors, typical ripple tested at specified conditions
- Control: On/Off (Positive logic), Power Good signal
- Safety: Certified for high-reliability applications, heat shock tested for 700 cycles
Buy the Murata MYSGK4R030ERSR – Reliable Power Conversion for Industrial Applications
Purchase Murata MYSGK4R030ERSR online today to ensure your embedded projects receive high-performance, reliable power conversion. This compact 30A non-isolated DC-DC converter features adjustable output voltage from 0.7 to 4.0V, high efficiency up to 94.4%, and protections such as UVLO and short circuit. Designed for high reliability, it withstands thermal cycling, making it suitable for FPGA, CPU, telecom, and datacom applications. Easy to install with a small form factor of 14.0x11.0x8.3mm, it guarantees stable operation in demanding industrial environments, ensuring optimal system performance and longevity.
Get Murata MYSGK4R030ERSR today—built for precision and long-lasting durability in embedded power systems.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS MYSGK4R030ERSR?
You can click on the BUY or RFQ button to purchase MYSGK4R030ERSR from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MYSGK4R030ERSR?
You can download the MYSGK4R030ERSR datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of MYSGK4R030ERSR?
MURATA POWER SOLUTIONS
