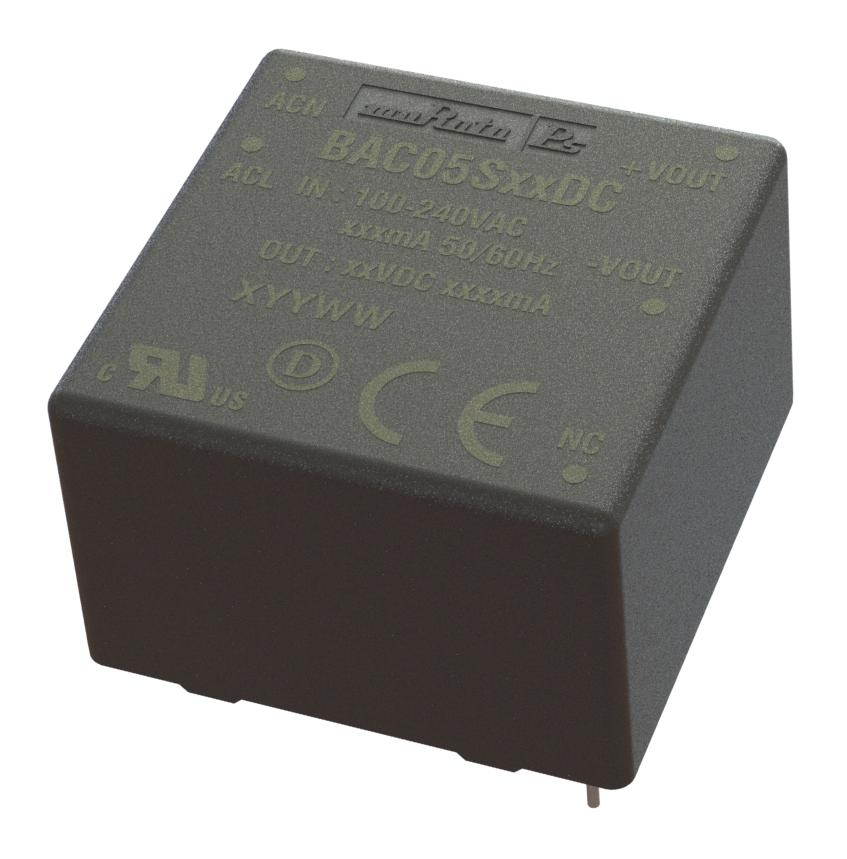

MURATA POWER SOLUTIONS BAC05S05DC Regulated Power Converter
The BAC05S05DC is an isolated 5-watt regulated power supply converter designed for medical, industrial, and automation applications. It features a compact design, high efficiency, and is UL 62368-1 and EN 62368-1 certified for reinforced insulation up to 240VAC. This single output AC/DC converter operates from 85-264VAC with a universal input, offering low no-load power consumption and high reliability. It supports operation from -40°C to 85°C with derating, and is suitable for use in medical systems with 1 MOPP and 2 MOOP, meeting stringent safety and electromagnetic compatibility standards.
MURATA POWER SOLUTIONS BAC05S05DC Regulated Power Converter Specifications:
- Input Voltage: 85-264VAC, 47-63Hz
- Output Power: 5W
- Output Voltage Options: 5V, 12V, 24V
- Isolation Voltage: 4.25kVDC for 1 second
- Operating Temperature: -40°C to 85°C (derating from 85°C)
- Efficiency: Up to 81%
- Protection: Short-circuit, overload
- Certification: UL62368, EN62368, UL Recognized, EN Recognized pending
- Isolation Resistance: 1000MΩ at 500VDC
- Dimensions: Typical size approximately 33mm x 25mm x 10mm
- Mounting: Surface-mount package
- Compliance: RoHS, EMC Class B, REACH
- Durability: Meets IEC standards for vibration, shock, and safety tests
Buy the Murata BAC05S05DC – Reliable Isolated Power Converter for Industrial Applications
Enhance your projects with the trusted Murata BAC05S05DC power converter. Its high efficiency, reinforced insulation, and compact design make it ideal for medical, industrial, and automation applications. With wide input voltage range and certifications, this 5W isolated AC/DC converter ensures safe, reliable operation in harsh environments. Whether upgrading existing systems or designing new equipment, buy online today and benefit from Murata's proven quality and technical support, ensuring seamless integration and long-term durability.
Buy Murata BAC05S05DC now and experience unmatched reliability and performance in your industrial, medical, or automation systems.
Frequently Asked Questions
Where can I buy MURATA POWER SOLUTIONS BAC05S05DC?
You can click on the BUY or RFQ button to purchase BAC05S05DC from an authorized MURATA POWER SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part BAC05S05DC?
You can download the BAC05S05DC datasheet or visit the MURATA POWER SOLUTIONS website for support.
Who is the manufacturer of BAC05S05DC?
MURATA POWER SOLUTIONS
