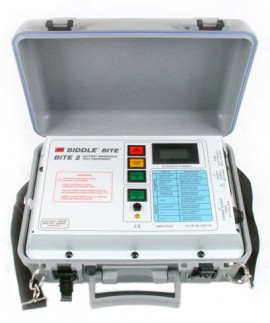

MEGGER BITE2 Battery Testing Device
The Megger BITE 2 is a sophisticated battery testing instrument designed to assess the condition of lead-acid and nickel-cadmium cells up to 7000 Ah. It performs non-disruptive, on-line testing by applying a capacitively coupled AC test signal across the battery string, measuring impedance, DC voltage, intercell connection resistance, and AC ripple current. The device automatically calculates and stores results, providing Pass, Warning, or Fail indications based on user-defined baseline values. Its advanced features include enhanced printing, data storage for over 2000 test sets, and compatibility with PowerDB software for detailed analysis. The receiver features a battery-operated design with internal memory, display, and data management functions, while the transmitter supplies the test signal. Test procedures require less than 15 seconds per cell, allowing quick, accurate assessment without battery discharge or downtime. Interpretations can be made for instantaneous, short-term, or long-term analysis, aiding maintenance decisions for various power and communication systems. Applications include electrical power plants, substations, telecommunications, UPS systems, railway signaling, aircraft power, maritime and military applications.
MEGGER BITE2 Battery Testing Device Specifications:
- Maximum total voltage at current source leads: 275 V dc
- Supply voltage: 100-130 V, 50/60 Hz, 200 VA; 210-250 V, 50/60 Hz, 200 VA
- Source output current: 10 A nominal, 50/60 Hz operation
- Maximum battery string test voltage: 275 V dc
- Display: Digital LCD, 0-15 A
- Charger supply voltage: 100-130 V, 14 VA; 210-250 V, 14 VA
- Output voltage: 6.50 V dc @ 1.10 A; open circuit voltage: 9.60 V dc
- Receiver accuracy: ac impedance 5% +1 LSD; de voltage 0.5% +1 LSD
- Voltage range: 1-25 V dc with 1 mV to 10 mV resolution
- Impedance range: 0-100 mQ with 0.1 mΩ to 1 mΩ resolution
- Settling time per reading: 3 seconds
- Display: LCD, 2 x 16 characters
- Power supply: NiMH battery, 4.8 V, 800 mAh, 5 hours continuous operation
- Maximum cell/jar test voltage: 25 V dc
- Operating temperature: 32-105°F (0-40°C)
- Storage temperature: -5 to 130°F (-20 to 55°C)
- Humidity: 20-90% RH, non-condensing
- Clamp options: standard, miniature, RopecT™ (up to 12 in.)
- Dimensions: BITE2: 6.5 H x 14 W x 10.6 D in; BITE2P: 7.5 H x 18.5 W x 14.6 D in; Receiver: 7.25 H x 11.25 W x 2 D in
- Weight: BITE2: 17 lb; BITE2P: 18 lb (alone), 32 lb (packed); Receiver: 1.6 lb
Buy the Megger BITE2 – Reliable Battery Impedance Testing for Industrial Applications
Optimize your battery maintenance with the Megger BITE2, a high-precision impedance testing instrument suitable for lead-acid and NiCd batteries up to 7000 Ah. Its fast, non-disruptive on-line testing takes less than 15 seconds per cell, providing key data on impedance, voltage, and intercell resistance. The device features advanced data storage, on-board printing, and software compatibility for detailed analysis. Use it for routine maintenance in power plants, telecom, military, and aviation sectors, ensuring reliable operation and early fault detection without system downtime.
Buy Megger BITE2 now and experience quick, non-disruptive battery condition assessments that enhance maintenance and system reliability.
