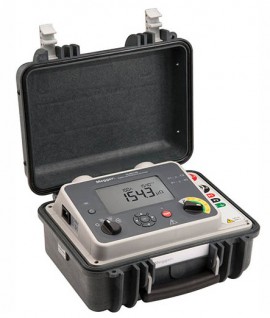

MEGGER DLRO100XB Low Resistance Ohmmeter
This device enables low resistance measurement across various applications in areas without access to mains power. It features an integrated Li-ion battery that supplies a consistent 100A current, supporting up to 200 manual or automatic tests to enhance productivity in remote locations. Advanced design features ensure safe operation under challenging conditions, including a CAT IV 600 VAC / 500 VDC safety rating compliant with IEC 61010 standards.
MEGGER DLRO100XB Low Resistance Ohmmeter Specifications:
- Measurement range: 0.1 μΩ - 1.999 Ω; 0.1 μΩ - 100.00 MΩ depending on mode
- Resolution: 0.1 μΩ to 0.1 Ω; 0.1 μΩ to 100.00 MΩ
- Noise rejection: Differential 100 mV @ 50-60 Hz
- DC output: Smooth DC for circuit breaker testing
- IP rating: IP54 (lid open), IP65 (lid closed)
- Operating temperature: -20°C to +50°C
- Storage temperature: -30°C to +70°C
- Humidity: Less than 85% non-condensing
- Battery life: 200 single tests or up to 2x10 minutes continuous 100A tests
- Battery type: User replaceable Li-ion battery pack
- Charge time: 2.5 hours from flat
- Maximum output voltage: 2V (battery), 3V (AC)
- Dimensions: 400 x 300 x 200 mm
- Weight: 7.9 kg with battery
- Safety: CAT IV 600 VAC / 500 VDC up to 2000 m, CAT IV 300 V up to 4000 m
- Display: Large, clear LCD with backlight and USB download capability
- Connectivity: USB, Bluetooth for remote control and data transfer
- Test modes: Manual, Auto, Continuous, with adjustable current from 10A to 110A
- Safety features: IP54/IP65 rated, rugged outer case, dual ground capability with optional clamp
Buy the Megger DLRO100XB – Reliable Low Resistance Tester for Industrial Applications
Buy the Megger DLRO100XB today to ensure precise low resistance measurements in industrial environments. This portable device features robust safety ratings, a powerful 100A Li-ion battery, and versatile test modes. With easy data management via USB and Bluetooth, it’s perfect for field technicians working on switchgear, busbar joints, cables, and manufacturing testing. Lightweight and rugged, the DLRO100XB is designed for demanding conditions, providing reliable performance, quick setup, and accurate results for electrical safety and quality assurance in diverse applications.
Order your Megger DLRO100XB low resistance ohmmeter today and enhance your electrical testing with reliable, portable, and easy-to-use equipment.
