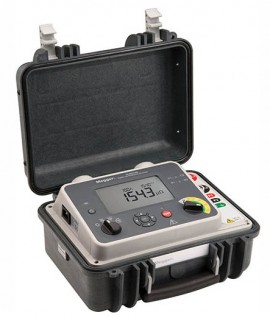

MEGGER DLRO100X Low Resistance Ohmmeter
This device enables low-resistance measurements across various applications in locations without mains power access. Equipped with an integrated Li-ion battery, it supplies a stable 100A current suitable for up to 200 manual or automatic tests, enhancing productivity in remote environments. Its advanced design ensures safe operation under challenging conditions, featuring a CAT IV 600 VAC / 500 VDC safety rating in compliance with IEC 61010 standards.
MEGGER DLRO100X Low Resistance Ohmmeter Specifications:
- Measurement range: 0.1 Ω to 1.999 kΩ
- Resolution: 0.1 μΩ to 0.1 Ω
- Noise rejection: Differential 100 mV @ 50-60 Hz
- DC output: Smooth DC with 100 A maximum current
- IP rating: IP54 lid open / IP65 lid closed
- Operating temperature: -20°C to +50°C
- Storage temperature: -30°C to +70°C
- Humidity: <85% R.H. non-condensing
- Battery life: Up to 200 single tests or 2x10 min continuous tests
- Battery type: User-replaceable Li-ion
- Charge time: 2.5 hours from flat
- Maximum output voltage: 1000 V (with optional clamp)
- Dimensions: 400 x 300 x 200 mm
- Weight: 7.9 kg with battery
- Accuracy: Typical + (0.2% + 0.2 Ω), Max + (0.2% + 0.8 Ω)
Buy the Buy Megger DLRO100X Part Number DLRO100X Online
Order the Megger DLRO100X low resistance ohmmeter online now to enhance your testing efficiency. Featuring 100A output, rechargeable Li-ion battery, rugged IP54/IP65 rated enclosure, and safety compliance, it is ideal for remote applications. Portable and easy to operate with multiple test modes—manual, auto, and continuous—this device ensures precise, stable readings even in noisy environments. Whether for utilities, manufacturing, or maintenance, buy online and benefit from quick delivery, reliable performance, and advanced safety features designed for demanding industrial conditions.
Buy Megger DLRO100X now and experience unmatched reliability and performance in low resistance testing with portable, high-current capabilities.
