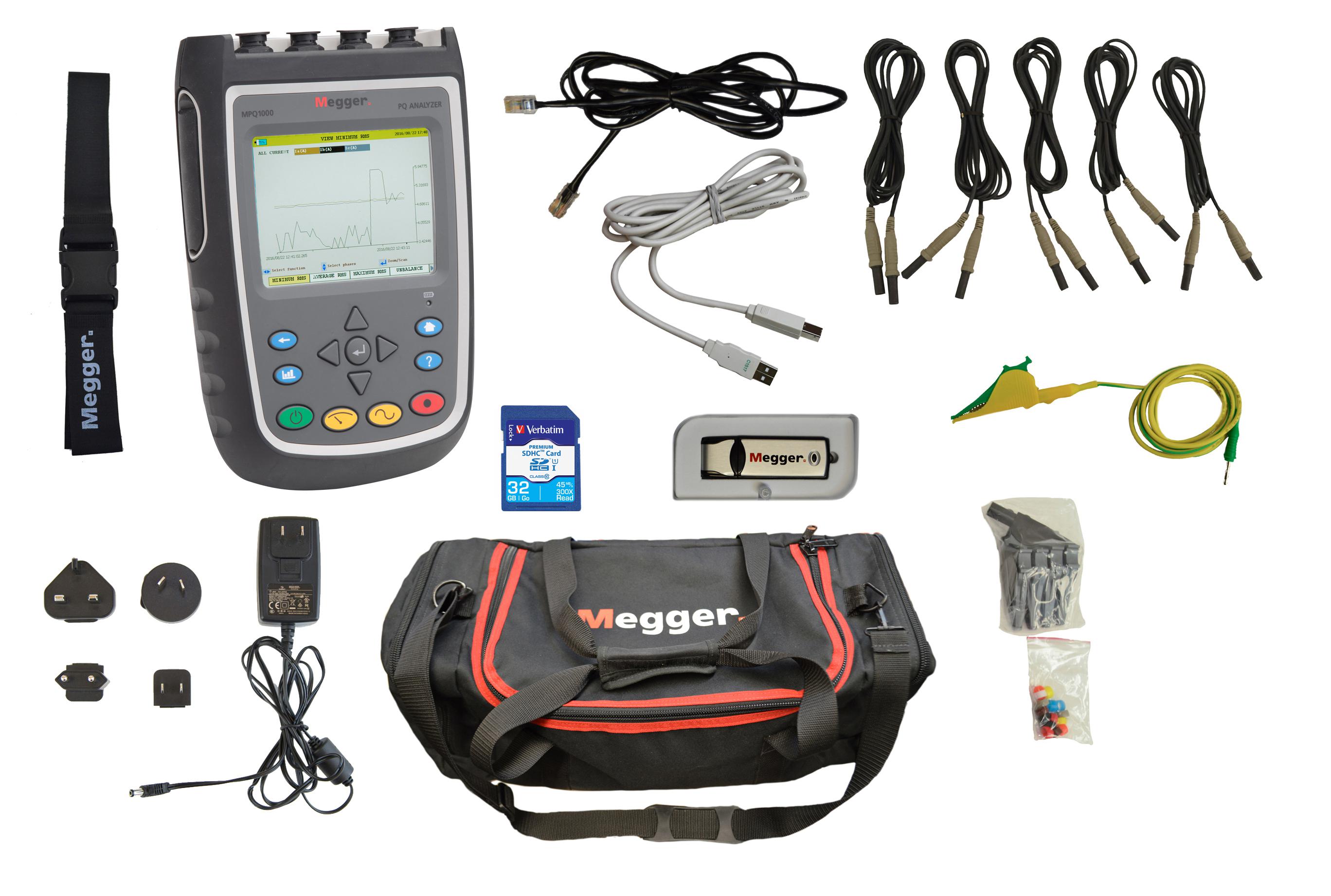

MEGGER MPQ1000BASIC Power Quality Analyzer
The Megger MPQ1000 Basic offers a comprehensive power quality monitoring kit designed for reliable and accurate measurement. It features automatic current transformer recognition to prevent incorrect ranges, powered CTs that eliminate the need for extra connections or batteries, and on-board data analysis for immediate site assessments. The device supports multiple communication options, including USB, Ethernet, USB sticks, and SD cards, facilitating flexible operation and large memory capacity with easy expansion. An expanded 1,000V AC range and 1,000V DC measurement capability make it suitable for various applications, including renewable energy testing, without additional equipment. It boasts a CAT IV 600V safety rating, full Class A compliance for accurate parameter recording, and smart configuration via Megger PQ software for quick setup. Additional features include phase angle stability measurement to troubleshoot phasing issues, timed waveform capture for concurrent PQ events, and user-friendly menus for straightforward operation. The package includes free software, requiring no licenses or dongles.
MEGGER MPQ1000Basic Power Quality Analyzer Specifications:
- Input Power: 120/240 V, 50/60 Hz with international adapters
- Battery: NiMH, field replaceable, up to 8 hours discharge, 3 hours recharge
- Data Storage: External SD card (max 32GB)
- Communication: USB, Ethernet, USB stick, SD card
- Environmental Operating: -20°C to 50°C, Storage: -30°C to 60°C
- Humidity: 0-95% non-condensing, Altitude <2000m: 1000V CAT III / 600V CAT IV
- Display: 11.5 cm x 8.5 cm color VGA, 640 x 480 pixels
- Safety: CAT IV @ 600V, full Class A compliance
- Dimensions: Standard industrial enclosure with Kensington lock support
- Measurement Capabilities: RMS voltage/current, harmonics, dips, swells, flicker, phase angles, power, energy, inrush, transient events, mains signaling
- Supported Modes: Scope, DMM, waveform capture, event analysis
- Size & Weight: Rugged portable design suitable for field use
Buy the Megger MPQ1000 – Reliable Power Quality Analyzer for Industrial Applications
Enhance your electrical testing with the Megger MPQ1000 Power Quality Analyzer. Featuring automatic CT recognition, flexible data transfer options, and a wide 1,000V AC/DC range, it provides comprehensive measurement for renewable, industrial, and utility applications. Its portable design, full Class A compliance, and safety rated CAT IV at 600V ensure reliable and safe operation in demanding environments. With on-board data analysis, waveform capture, and multiple communication methods including SD cards and Ethernet, this analyzer makes power quality assessments simple, quick, and professional. Order online today to upgrade your diagnostic toolkit.
Order your Megger MPQ1000 Power Quality Analyzer today and enhance your industrial testing capabilities with this versatile, high-accuracy device.
