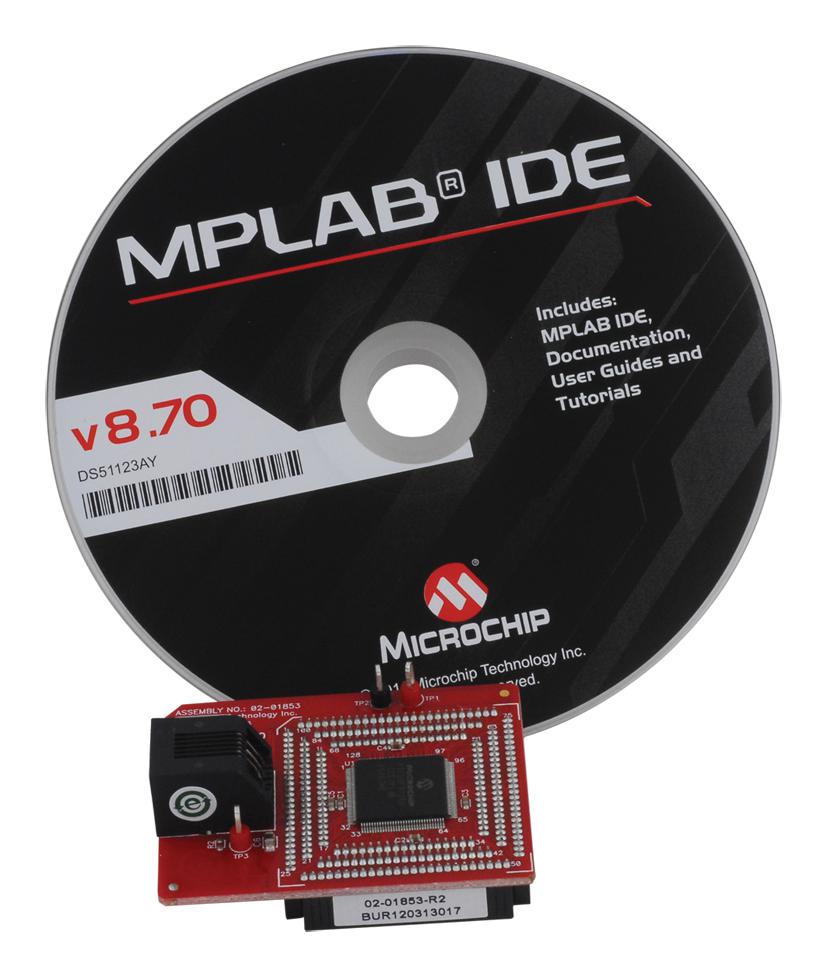

Microchip Technology AC162064 Debug Header Board
The AC162064 header board is designed for use with Microchip's in-circuit emulators and debuggers, supporting dsPIC33 and PIC18 microcontrollers. It features dimensions of 2.250 inches in length, 1.750 inches in width, and 0.540 inches in height. The header accommodates various device pin counts, typically 28, 40, or 64 pins, with integrated jumper settings enabling device or voltage selection. It allows secure connection to target boards with optional transition sockets or stand-offs, providing robust debugging and emulation capabilities for reliable development in embedded systems.
Microchip Technology AC162064 Debug Header Board Specifications:
- Dimensions: Length 2.250 inches, Width 1.750 inches, Height 0.540 inches
- Compatible with dsPIC33FJ and PIC18F series devices
- Pin Count: 28, 40, or 64 pins with respective device support
- Jumper Settings: Enable or disable voltage regulator via jumpers
- Supports transition sockets and stand-offs for versatile mounting
- Voltage Rating: Max 3.6V on device pins
- Test points available for VDD, ground, ICD clock, data, and reset signals
- Header part numbers include AC162064 for general use
- Precise pin connections facilitate robust debugging and programming
- Dimensions section designed for easy integration with target development boards
Buy the Microchip AC162064 – Reliable Debugging Header for Embedded Systems
Enhance your embedded development projects with the Microchip AC162064 header board. Designed for compatibility with dsPIC33 and PIC18 microcontrollers, it offers flexible connection options with transition sockets and stand-offs. With precise pin support, jumper selections for voltage regulation, and test points for diagnostics, this header provides reliable and efficient debugging and emulation capabilities. Perfect for embedded engineers seeking high-quality, durable, and easy-to-integrate hardware for comprehensive testing and development environments.
Buy Microchip AC162064 now and experience unmatched reliability and performance for your embedded system development needs.
Frequently Asked Questions
Where can I buy Microchip Technology AC162064?
You can click on the BUY or RFQ button to purchase AC162064 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part AC162064?
You can download the AC162064 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of AC162064?
Microchip Technology
