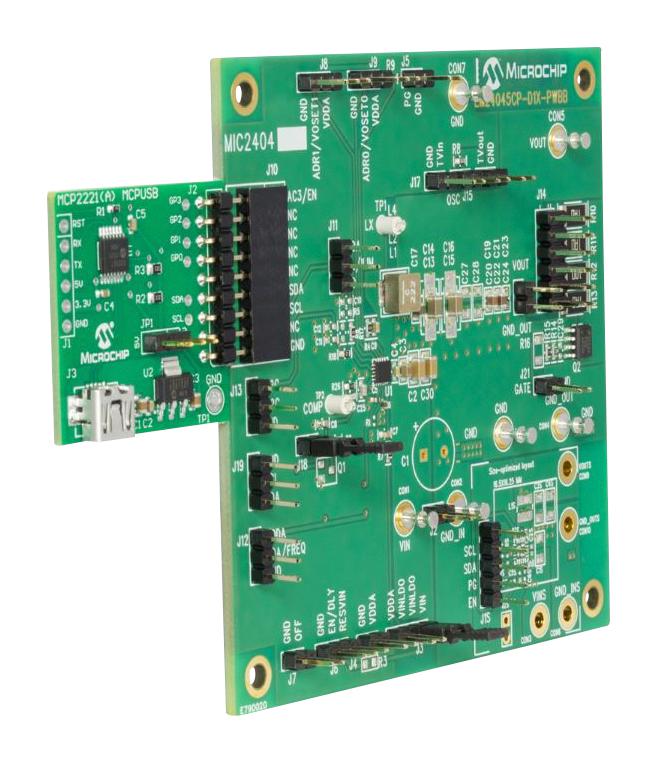

Microchip Technology ADM00764 Power Management Board
The ADM00764 is a Microchip MIC24045 evaluation board supporting high-efficiency, wide-input range, I2C-programmable synchronous step-down regulators from 4.5V to 19V input voltage. It features adjustable output voltage from 0.64V to 5.25V, providing up to 5A current with efficiency up to 95%. The board includes an on-board load transient generator, loop gain measurement connections, and a compatible MCP2221 I2C interface connector, making it suitable for power management and embedded system development. It comes with the evaluation board, MCP2221 breakout module, USB mini cable, and reference documents.
Microchip Technology ADM00764 Power Management Board Specifications:
- Input Voltage Range: 4.5V to 19V
- Output Voltage Range: 0.64V to 5.25V
- Maximum Current: 5A
- Efficiency: Up to 95%
- Step Sizes for Output Voltage: 5mV, 10mV, 30mV, 50mV
- Board includes load transient generator and loop gain measurement connections
- Integrated with MCP2221 I2C interface connector for easy digital control
- Operating temperature and other mechanical details are standard for evaluation boards
- Includes evaluation board, MCP2221 breakout module, USB mini cable, and documentation
Buy the Microchip MIC24045 – Reliable Power Management for Industrial Applications
Upgrade your power management solutions with the Microchip MIC24045 evaluation board. Designed for high-efficiency, wide-input voltage applications, it delivers up to 5A current with adjustable voltage from 0.64V to 5.25V. Featuring an on-board transient load generator and I2C interface for seamless control, this board is ideal for power systems development and testing in industrial environments. Purchase online today to accelerate your embedded design projects with reliable, manufacturer-backed solutions, supported by comprehensive documentation and support resources.
Buy Microchip MIC24045 evaluation board now and experience unmatched power management efficiency and versatile testing capabilities.
Frequently Asked Questions
Where can I buy Microchip Technology ADM00764?
You can click on the BUY or RFQ button to purchase ADM00764 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ADM00764?
You can download the ADM00764 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ADM00764?
Microchip Technology
