Microchip Technology MCP48FVB12EUN Dual-Channel 12-Bit DAC
The MCP48FVB12 is a high-resolution, dual-channel 12-bit digital-to-analog converter (DAC) featuring an SPI interface and Volt-to-Voltage output buffer. Designed for precision, it supports internal and external voltage references, with gain options of 1x or 2x, providing flexible and accurate analog output. The device operates from 1.8V to 5.5V, includes power-on reset, brown-out protection, and power-down modes, making it ideal for sensor calibration, data acquisition, and portable instrumentation. Its rail-to-rail output buffer ensures compatibility with a wide range of industrial and measurement applications.
Microchip Technology MCP48FVB12EUN Dual-Channel 12-Bit DAC Specifications:
- Resolution: 12-bit (4096 steps)
- Channels: Dual
- Supply Voltage Range: 1.8V to 5.5V
- Output Voltage Range: Vgg to Vpp (full-scale)
- Reference Sources: Vpp, External Vref, Internal Band Gap
- Output Gain: 1x or 2x (software selectable)
- Power-Down Modes: Power-off, Output high impedance, Output load resistors
- Output Buffer: Rail-to-rail with low noise
- Operating Temperature Range: -40°C to +125°C
- SPI Interface Support: Up to 20 MHz write, 10 MHz read

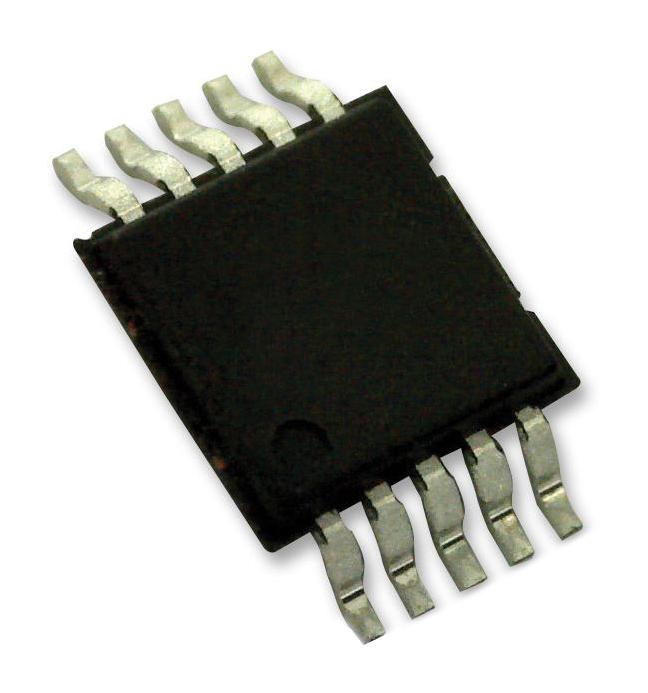

- Package: 10-lead MSOP
- Features: Power-on Reset, Brown-Out Reset, Low Power Consumption, Internal Band Gap reference
- Application Suitability: Sensor calibration, low-power instrumentation, data acquisition, motor control
Buy the Microchip MCP48FVB12 U– Reliable Dual-Channel 12-Bit DAC for Industrial Applications
Purchase the Microchip MCP48FVB12 online today and equip your projects with a high-performance, dual-channel 12-bit DAC featuring SPI interface, power management, and precision output buffer. Ideal for sensor calibration, portable instrumentation, and industrial automation, this device offers flexible voltage references and gain options, ensuring accurate, stable, and efficient voltage output. With built-in reset protections and low power consumption, it is designed to meet the demanding needs of modern measurement and automation solutions, available in compact MSOP packages foreasy integration.
Order your Microchip MCP48FVB12 dual-channel 12-bit DAC today and enhance your industrial and measurement projects with precision and reliability.
Frequently Asked Questions
Where can I buy Microchip Technology MCP48FVB12EUN?
You can click on the BUY or RFQ button to purchase MCP48FVB12EUN from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part MCP48FVB12EUN?
You can download the MCP48FVB12EUN datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of MCP48FVB12EUN?
Microchip Technology
