Microchip Technology QT60168ASG Touch Key Sensor
The QT60168-ASG is a second-generation digital charge-transfer QProx IC designed for flexible touch key sensing. It detects up to 16 keys on a scanned passive X-Y matrix, capable of projecting signals through dielectrics up to 50mm thick. The key areas are defined by simple interdigitated electrodes made of copper, silver, or carbon. Features include individual sensitivity adjustment, auto-calibration, adjacent key suppression, spread-spectrum noise immunity, and minimal external components. Ideal for sealed, durable touch panels in appliances, security, and industrial controls, it offers high robustness against environmental effects and vandalism with integrated self-test diagnostics.
Microchip Technology QT60168ASG Touch Key Sensor Specifications:
- Operating temp: -40°C to +105°C
- Storage temp: -55°C to +125°C
- Supply Voltage: +3.0V to +5.25V
- Max continuous pin current: 10mA
- Voltage forced onto pins: -0.6V to +5.85V
- EEPROM write cycles: 100,000
- Response time: <25ms
- Oscillator frequency: 226kHz
- SCK clock rate: Max 1.5MHz

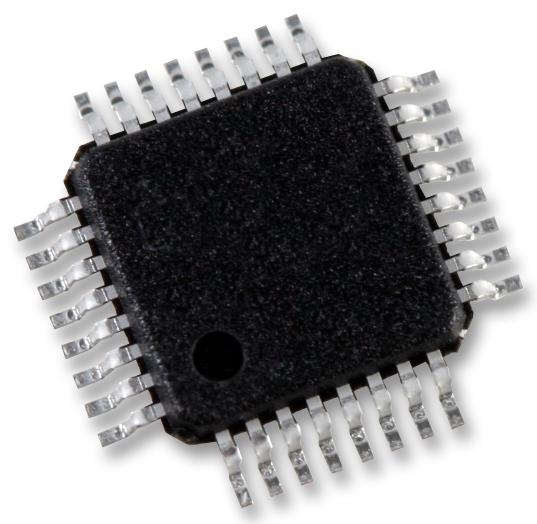

- Package: 32-pin TQFP
- Product dimensions: 8.75mm x 8.75mm x 0.45mm
- Response speed affected by key count and burst spacing, adjustable via setup
- Detection with spread-spectrum modulation provides high noise immunity
- Designed for sealed, water-proof control panels with minimal external circuitry
Buy the Quantum Series QT60168 ASG: Touch Key Sensing IC
Purchase the Quantum series QT60168ASG online now to ensure seamless integration into your durable touch panels. This high-performance IC features auto-calibration, noise suppression, and flexible electrode configurations. With a minimal external component count, it is ideal for sealed, vandal-proof applications such as appliances, security systems, and industrial controls. Its high noise immunity through spread-spectrum modulation ensures reliable operation across various dielectric materials like glass, plastic, or wood. Get this cost-effective, robust touch sensing solution today and elevate your product’s durability and user experience.
Order your Quantum Series QT60168ASG touch sensing IC today and give your projects the dependable durability and flexible design they deserve.
Frequently Asked Questions
Where can I buy Microchip Technology QT60168ASG?
You can click on the BUY or RFQ button to purchase QT60168ASG from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part QT60168ASG?
You can download the QT60168ASG datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of QT60168ASG?
Microchip Technology
