Microchip Technology APT100GN120B2G Power IGBT Module
The APT100GN120B2G is a 1200V IGBT utilizing advanced Field Stop and Trench Gate technologies, ideal for low-frequency applications with minimal conduction loss. Featuring low VCE(on), easy paralleling capabilities, an integrated gate resistor for reliability, and RoHS compliance, it suits welding, solar inverters, motor drives, and UPS. Its high efficiency, low EMI, and reliable operation under short circuits make it suitable for industrial power switching, inductive heating, and more. Thermal and switching characteristics ensure optimal performance in demanding environments.
Microchip Technology APT100GN120B2G Power IGBT Module Specifications:
- Collector-Emitter Voltage: 1200V
- Gate-Emitter Voltage: +30V
- Continuous Collector Current at 25°C: 245A
- Continuous Collector Current at 110°C: 100A
- Pulsed Collector Current: 300A
- Switching Safe Operating Area at 150°C: 300A @ 1200V
- Total Power Dissipation: 960 Watts
- Junction Operating Range: -55°C to 150°C
- Lead Soldering Temp (10 sec, 0.063 inch from case): 300°C
- Collector-Emitter Breakdown Voltage: 1200V
- Gate Threshold Voltage: 5.0V to 6.5V
- Collector-Emitter On Voltage at 25°C: 1.4V to 1.7V
- Switching Energy (Turn-on): 11 mJ, (Turn-off): 14 mJ
- Input Capacitance: 6500 pF
- Output Capacitance: 365 pF
- Gate-Emitter Capacitance: 280 pF
- Package Weight: 61 grams

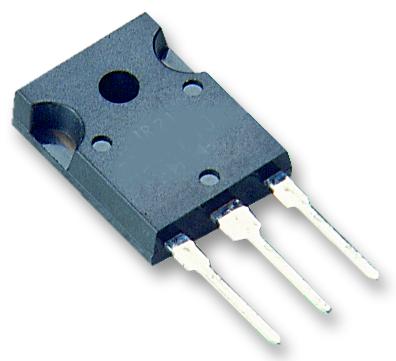

Buy the Microsemi APT100GN120B2G – Reliable Power IGBT for Industrial Applications
Order the Microsemi APT100GN120B2G today through our secured online platform and ensure your industrial projects benefit from high-performance, reliable power switching components. This 1200V IGBT features low conduction and switching losses, making it perfect for welding, solar inverters, and motor drives. Its RoHS compliance and integrated gate resistor facilitate reliable operation and minimal electromagnetic interference, while its thermal stability guarantees consistent performance even under demanding conditions. Purchase now for fast delivery and technical support.
Get Microsemi APT100GN120B2G today—built for precision, efficiency, and long-lasting durability in industrial power switching.
