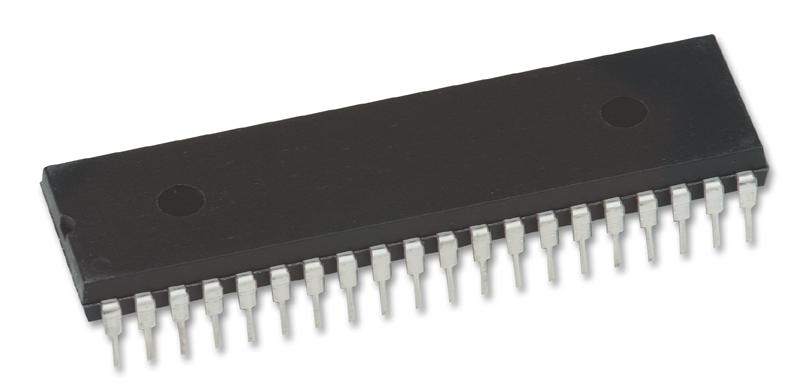

Microchip Technology PIC17C4316P Microcontroller
The PIC17C4316P is a high-performance 8-bit CMOS microcontroller featuring EPROM/ROM memory, multiple timer modules, a USART module for serial communication, and versatile oscillator options including low-power RC, crystal, and external clock modes. It supports power-on reset, watchdog timer, interrupt handling, and various power-saving modes like sleep. With up to 454 bytes of RAM and 33 I/O pins, it is suitable for complex embedded applications such as motor control, industrial systems, and automotive control, offering efficient instruction execution and low power consumption.
Microchip Technology PIC17C4316P Microcontroller Specifications:
- Maximum Frequency: 33 MHz
- Operating Voltage Range: 2.5V to 6.0V
- Program Memory: 2K to 8K x 16 bits EPROM/ROM
- Data Memory: 232 to 454 bytes RAM
- Timer Modules: 1x 16-bit, 2x 8-bit, 1x 16-bit with capture inputs
- PWM Outputs: 2 channels, up to 10-bit resolution
- USART: Full duplex asynchronous and synchronous modes
- Oscillator Options: RC, XT, EC, LF crystal/resonator
- Power-up Timer: 96 ms
- Watchdog Timer: Yes, with separate RC oscillator
- Interrupts: 11 sources, 4 vector addresses
- I/O Pins: 33, with interrupt-on-change and power drive capability
- Operating Temperature: -40°C to +85°C (industrial), -40°C to +70°C (commercial)
- Package Types: 40-pin DIP, 44-pin PLCC, MQFP, TQFP
Buy the Microchip Series 17C4X PIC17C4316P: PIC17C4316P
Discover the power of the PIC17C4316P, a high-performance 8-bit CMOS microcontroller with EPROM/ROM memory, multiple timers, USART, and flexible oscillator options. Its 454 bytes of RAM and 33 I/O pins make it ideal for complex industrial, automotive, and control applications. This microcontroller delivers fast execution at 33 MHz, supports low-power sleep modes, and features various interrupt sources for reliable operation. Order online today and enhance your embedded system projects with Microchip quality and efficiency.
Order your Microchip Series17C4X PIC17C4316P today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Microchip Technology PIC17C4316P?
You can click on the BUY or RFQ button to purchase PIC17C4316P from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part PIC17C4316P?
You can download the PIC17C4316P datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of PIC17C4316P?
Microchip Technology
