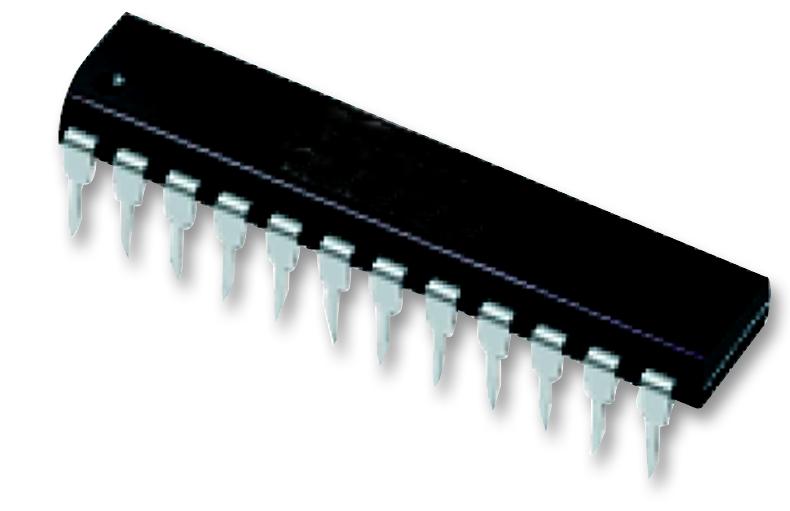

Microchip Technology ATF22V10B15GM883 CMOS Logic Device
The Atmel ATF22V10B is a high-performance CMOS electrically erasable programmable logic device (PLD) featuring speeds up to 7.5ns and low power dissipation of 10mA. It employs advanced Flash technology, ensuring reprogrammability and high reliability with 20-year data retention and 100 erase/write cycles. Designed for industrial and military temperature ranges, it includes features such as input/output pull-up resistors, CMOS and TTL compatibility, and multiple package options including dual-in-line and surface mount configurations. This device is ideal for complex logic functions, automation, and control systems requiring robustness and speed.
Microchip Technology ATF22V10B15GM883 CMOS Logic Device Specifications:
- Speed: Up to 7.5ns (tpp)
- Data Retention: 20 years
- Erase/Write Cycles: 100
- Power Dissipation: As low as 10mA
- Voltage Range: 5V ±10% for industrial/military, 5V ±5% for commercial
- Temperature Range: -55°C to +125°C (military), -40°C to +85°C (industrial), 0°C to +70°C (commercial)
- Input/Output Pull-up Resistors: Internal, >50KΩ
- Package Options: Dual-in-line (DIP), Surface Mount (TSSOP, 28L LCC)
- ESD Protection: 2,000V
- Logic Compatibility: CMOS and TTL
- Reprogrammable: Yes, using standard PLD programmers
- Maximum Input Voltage: -0.6V DC, undershoot to -2.0V for pulses <20ns
- Operating Voltage: 5V +10%, +5%
- Operating Temp: Full military and industrial temperature ranges
Buy the Atmel ATF22V10B – Reliable Logic Device for Industrial Applications
Purchase the Atmel ATF22V10B online today and enjoy high-speed reprogrammable logic capabilities with 20-year data retention, low power dissipation, and robust operation across industrial and military temperature ranges. Whether for automation, control systems, or complex logic functions, this device guarantees excellent performance and durability. Easy to install with various package options, it ensures your projects are executed with reliability and speed. Order now to enhance your system’s efficiency and dependability.
Buy Atmel ATF22V10B now and experience unmatched reliability and performance in high-speed logic functions suitable for industrial and military environments.
Frequently Asked Questions
Where can I buy Microchip Technology ATF22V10B15GM883?
You can click on the BUY or RFQ button to purchase ATF22V10B15GM883 from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ATF22V10B15GM883?
You can download the ATF22V10B15GM883 datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ATF22V10B15GM883?
Microchip Technology
