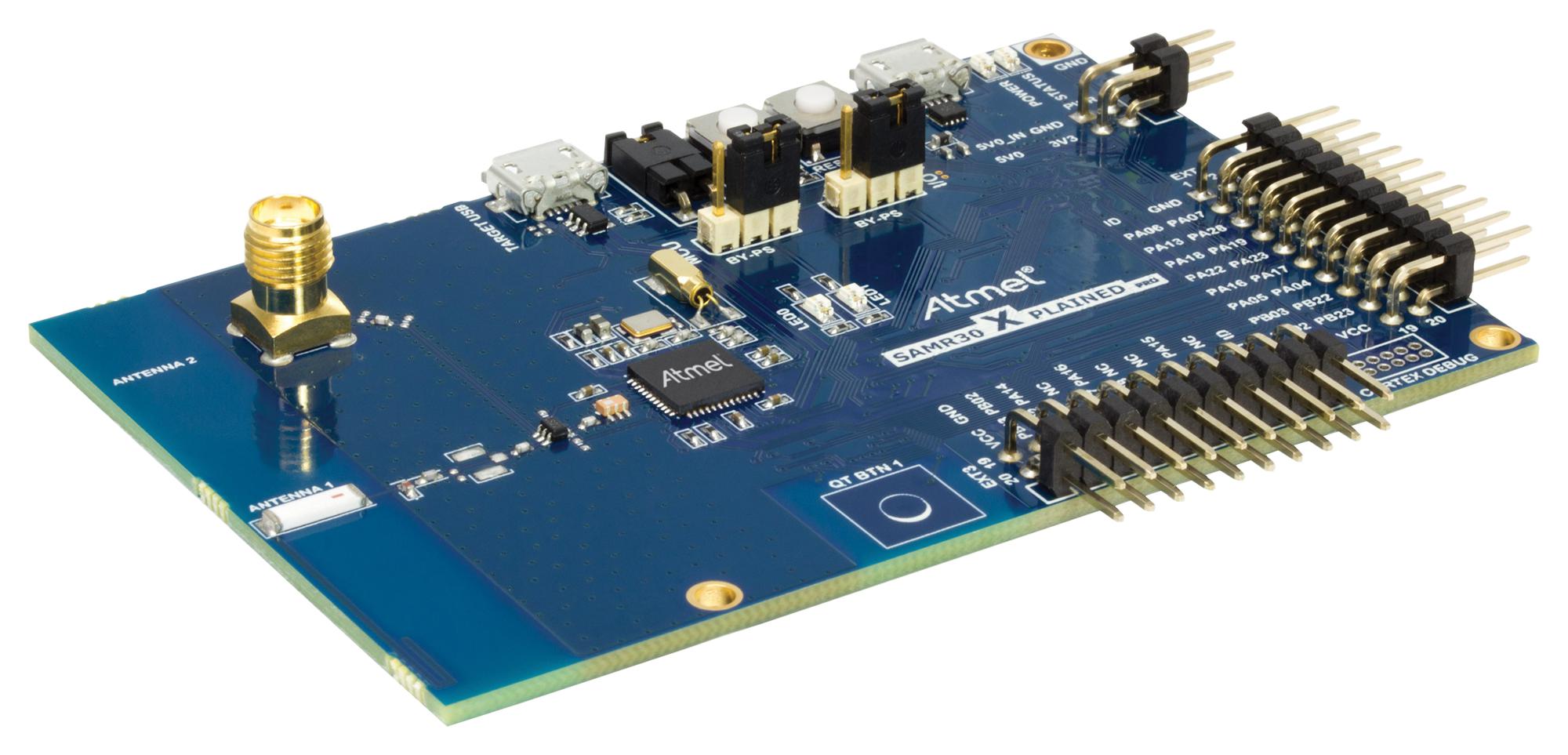

Microchip Technology ATSAMR30XPRO RF Evaluation Module
The SAM R30 Xplained Pro is a low-power evaluation platform designed for the ATSAMR30G18A SoC. It features an onboard Embedded Debugger, dual-band 868/915MHz RF support with antenna options, four GPIOs, two mechanical buttons, two LEDs, and a QTouch button for capacitive touch applications. Powered by a 32.768 kHz crystal for clocking and a 16 MHz crystal for RF, it supports multiple power sources including external 5V, USB, and target USB. The kit includes extension headers, USB interfaces, and power measurement circuitry for power profiling and advanced debugging.
Microchip Technology ATSAMR30XPRO RF Evaluation Module Specifications:
- Support for 868MHz and 915MHz ISM bands with dual wideband support
- Onboard Embedded Debugger (EDBG) with programmable debug interface
- Includes 32.768 kHz real-time clock crystal and 16 MHz RF crystal for clocking
- Mechanical buttons: RESET and user configurable
- Connectors for external antennas and multiple interfaces including UART, SPI, I2C, USB
- Supports power input from external 5V, USB host, target USB, with automatic power source detection
- Two high dynamic range current measurement channels with four measurement ranges
- Supported standards: FCC (USA) and RED (EU) certifications
- Multiple extension headers (standardized pinout) for expansion and peripheral connection
- Operating voltage: 3.3V default, configurable for other voltages with modifications
- Includes passive RF switch with antenna diversity and ceramic chip antenna
- Measurement accuracy ranges from 20nA to 400mA with typical high precision
- Power measurement bandwidth up to 250kHz with typical sampling rate of 16.67ksps
- Comprehensive software support via Atmel Studio, ASF, and Atmel START
- Designed for low power IoT and RF communication development
Buy the Buy Microchip RF Evaluation Module Part Number ATSAMR30XPRO Online
Order the Microchip ATSAMR30XPRO RF evaluation module online today to benefit from its onboard embedded debugger, dual-band 868/915MHz RF support, capacitive touch button, LEDs, multiple power sources, and comprehensive interfaces. Ideal for developing and testing RF communications, power consumption profiling, and embedded debugging in low-power applications. Its extension headers enable easy expansion, while certification ensures compliance with FCC and EU standards. Purchase now for reliable performance and advanced radio features tailored to your IoT projects and wireless solutions.
Get Microchip ATSAMR30XPRO today—built for precision RF applications with onboard debugger and power profiling features.
Frequently Asked Questions
Where can I buy Microchip Technology ATSAMR30XPRO?
You can click on the BUY or RFQ button to purchase ATSAMR30XPRO from an authorized Microchip Technology distributor.
How do I troubleshoot issues or seek technical support for part ATSAMR30XPRO?
You can download the ATSAMR30XPRO datasheet or visit the Microchip Technology website for support.
Who is the manufacturer of ATSAMR30XPRO?
Microchip Technology
