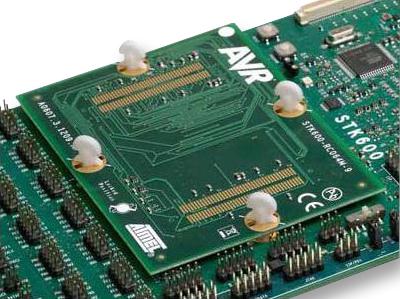

Microchip Technology ATSTK600RC31 Routing and Socket Card
The AVR600 routing, socket, and expansion cards facilitate custom hardware development for STK600 systems. These cards include routing and socket interfaces, supporting various IC packages, with pinouts designed for low-cost prototyping. The routing card manages signal connections between socket and STK600, including power, decoupling, and programming signals. Expansion cards extend peripheral options like memory and displays, mounting in dedicated slots. The design emphasizes flexible pin routing, signal integrity, and compatibility with standard connectors, enabling efficient prototyping of AVR microcontroller-based projects.
Microchip Technology ATSTK600RC31 Routing and Socket Card Specifications:
- Connector footprints: FSI-140-03-G-D-AD (80 pins), FSI-150-03-G-D-AD (100 pins), FCI 61082-101402LF
- Board thickness: 1.6mm for routing and socket cards; no thickness requirement for expansion cards
- Dimensions: Routing card - approximately 105mm x 84mm; socket card - approximately 105mm x 94mm; expansion card width max 55mm
- Component placement: connectors suitable for spring-loaded headers, decoupling components, clip holes for mounting
- Voltage and signal routing: power lines, decoupling, programming interfaces (ISP, JTAG), analog references, and ID system signals
- ID system: two outputs and two inputs, 8-bit width, 256 ID space, supporting custom IDs for voltage limits
- Power design: Routing card manages power and decoupling; socket cards do not include power management
- Connector placement: routes signals between socket, expansion, and STK600 headers, compatible with standard AVR development tools
- Physical parameters: includes pad placement, hole sizes (approx 4mm), and component mounting areas for reliable connections
- Compatibility: designed for low-cost prototyping, flexible pin routing, and support for various AVR IC packages
Buy the Atmel Series AVR600 Routing and Socket: ATSTK600RC31
Enhance your AVR microcontroller projects with the AVR600 routing, socket, and expansion cards. These professional-grade cards facilitate custom hardware design, signal routing, and peripheral expansion with compatibility for standard connectors and flexible pin configurations. Built for low-cost prototyping, they support various IC packages, ensuring reliable performance with optimized signal integrity. Easy to install and designed for versatility, order online today to accelerate your development process and ensure dependable, high-quality prototypes for your embedded systems and automation projects.
Order your Atmel Series AVR600 routing and socket cards today and give your projects the dependable quality they deserve for custom AVR development.
